Paper Title:
Non-Contact Measuring Modeling and Simulation of CNC Machine Tools under High Feed Rate Condition
  Abstract

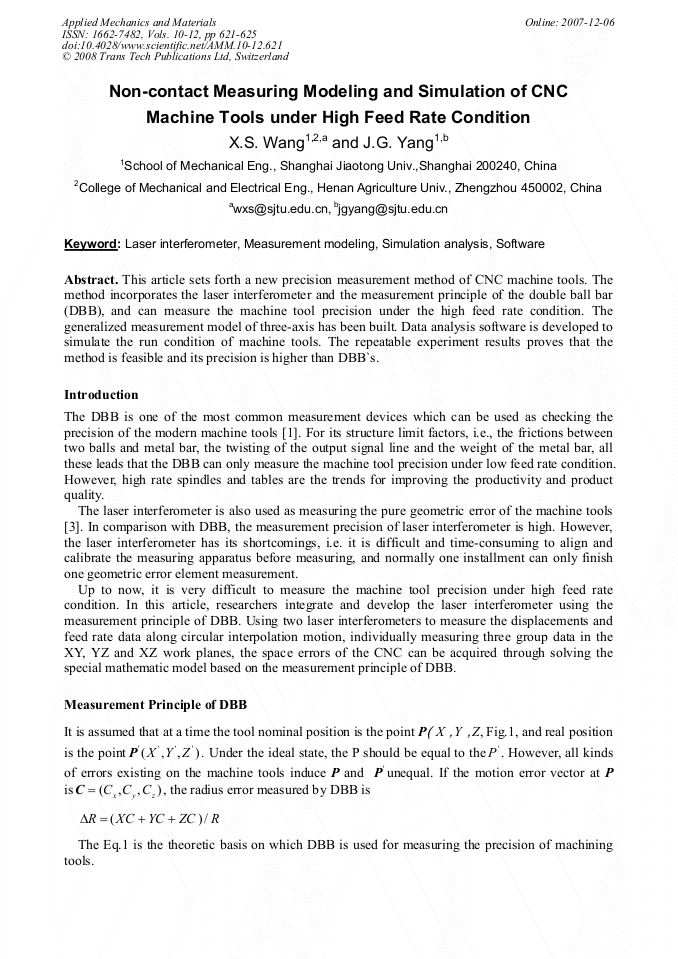

This article sets forth a new precision measurement method of CNC machine tools. The method incorporates the laser interferometer and the measurement principle of the double ball bar (DBB), and can measure the machine tool precision under the high feed rate condition. The generalized measurement model of three-axis has been built. Data analysis software is developed to simulate the run condition of machine tools. The repeatable experiment results proves that the method is feasible and its precision is higher than DBB`s.

  Info
Periodical
Edited by
Kai Cheng, Yingxue Yao and Liang Zhou
Pages
621-625
DOI
10.4028/www.scientific.net/AMM.10-12.621
Citation
X.S. Wang, J. G. Yang, "Non-Contact Measuring Modeling and Simulation of CNC Machine Tools under High Feed Rate Condition", Applied Mechanics and Materials, Vols. 10-12, pp. 621-625, 2008
Online since
December 2007
