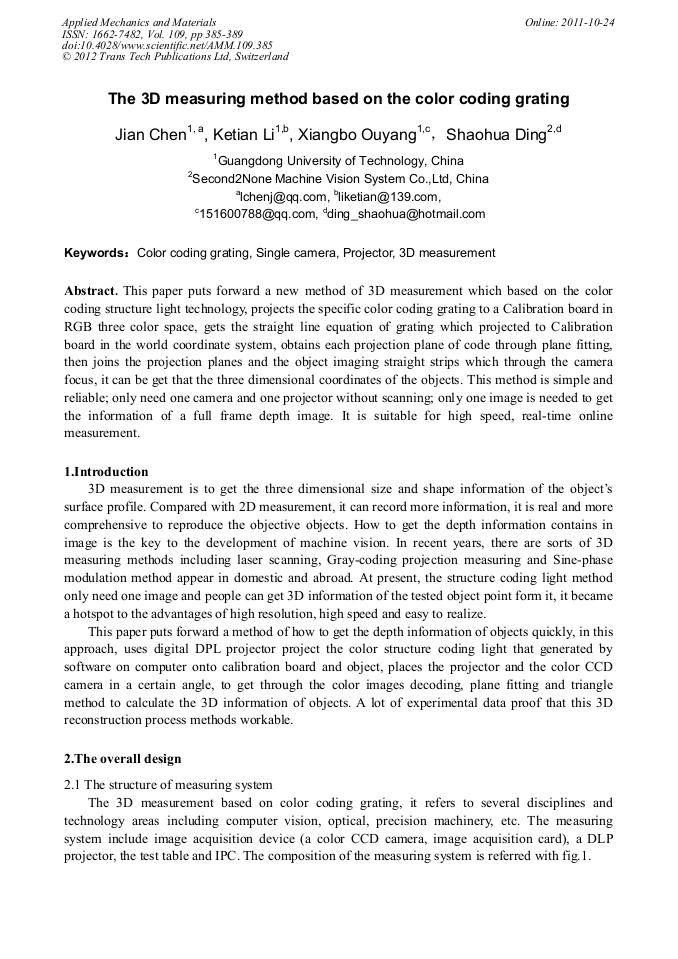

Paper Title:
The 3D Measuring Method Based on the Color Coding Grating
  Abstract

This paper puts forward a new method of 3D measurement which based on the color coding structure light technology, projects the specific color coding grating to a Calibration board in RGB three color space, gets the straight line equation of grating which projected to Calibration board in the world coordinate system, obtains each projection plane of code through plane fitting, then joins the projection planes and the object imaging straight strips which through the camera focus, it can be get that the three dimensional coordinates of the objects. This method is simple and reliable; only need one camera and one projector without scanning; only one image is needed to get the information of a full frame depth image. It is suitable for high speed, real-time online measurement.

  Info
Periodical
Chapter
Chapter 4: Manufacturing and Mechanics Engineering
Edited by
Yongping Zhang, Linhua Zhou and Elwin Mao
Pages
385-389
DOI
10.4028/www.scientific.net/AMM.109.385
Citation
J. Chen, K. T. Li, X. B. Ouyang, S. H. Ding, "The 3D Measuring Method Based on the Color Coding Grating", Applied Mechanics and Materials, Vol. 109, pp. 385-389, 2012
Online since
October 2011
