Paper Title:
Finite Element Analysis and Topology Optimization of the Clamping Unit in a Two-Platen Injection Machine
  Abstract

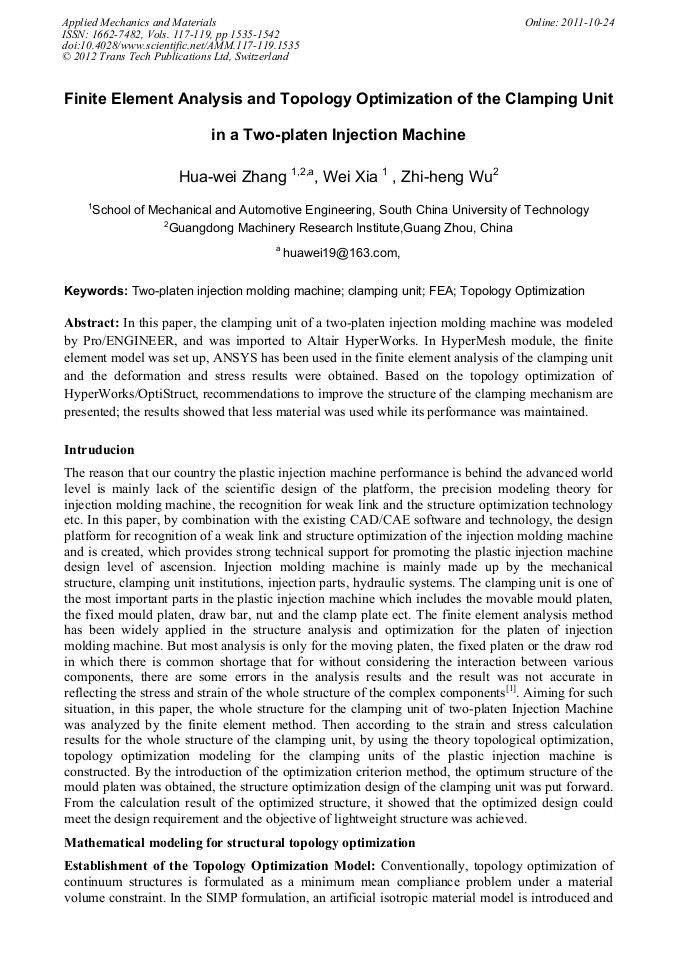

In this paper, the clamping unit of a two-platen injection molding machine was modeled by Pro/ENGINEER, and was imported to Altair HyperWorks. In HyperMesh module, the finite element model was set up, ANSYS has been used in the finite element analysis of the clamping unit and the deformation and stress results were obtained. Based on the topology optimization of HyperWorks/OptiStruct, recommendations to improve the structure of the clamping mechanism are presented; the results showed that less material was used while its performance was maintained.

  Info
Periodical
Chapter
Chapter 8: Material Processing Technology
Edited by
Huixuan Zhang, Ye Han, Fuxiao Chen and Jiuba Wen
Pages
1535-1542
DOI
10.4028/www.scientific.net/AMM.117-119.1535
Citation
H. W. Zhang, W. Xia, Z. H. Wu, "Finite Element Analysis and Topology Optimization of the Clamping Unit in a Two-Platen Injection Machine", Applied Mechanics and Materials, Vols. 117-119, pp. 1535-1542, 2012
