Paper Title:
Research on Parametric Design Platform of Gear Based on Pro/E
  Abstract

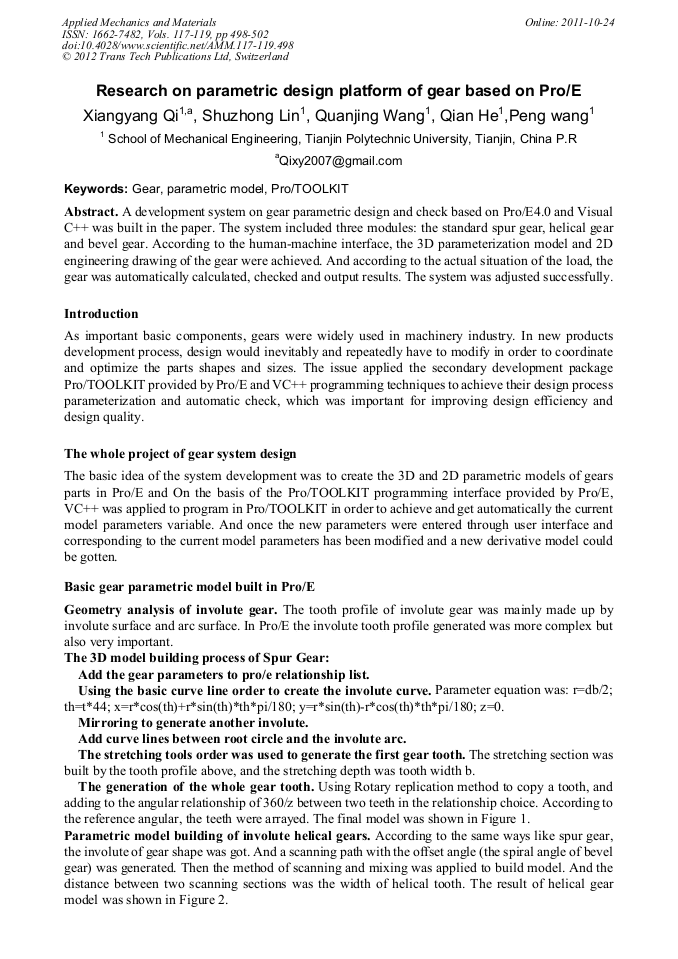

A development system on gear parametric design and check based on Pro/E4.0 and Visual C++ was built in the paper. The system included three modules: the standard spur gear, helical gear and bevel gear. According to the human-machine interface, the 3D parameterization model and 2D engineering drawing of the gear were achieved. And according to the actual situation of the load, the gear was automatically calculated, checked and output results. The system was adjusted successfully

  Info
Periodical
Chapter
Chapter 3: Solid Mechanics
Edited by
Huixuan Zhang, Ye Han, Fuxiao Chen and Jiuba Wen
Pages
498-502
DOI
10.4028/www.scientific.net/AMM.117-119.498
Citation
X. Y. Qi, S. Z. Lin, Q. J. Wang, Q. He, P. Wang, "Research on Parametric Design Platform of Gear Based on Pro/E", Applied Mechanics and Materials, Vols. 117-119, pp. 498-502, 2012
