Paper Title:
Research on Automatic and Rapid 3-D Modeling for Flow Field of a Control Valve

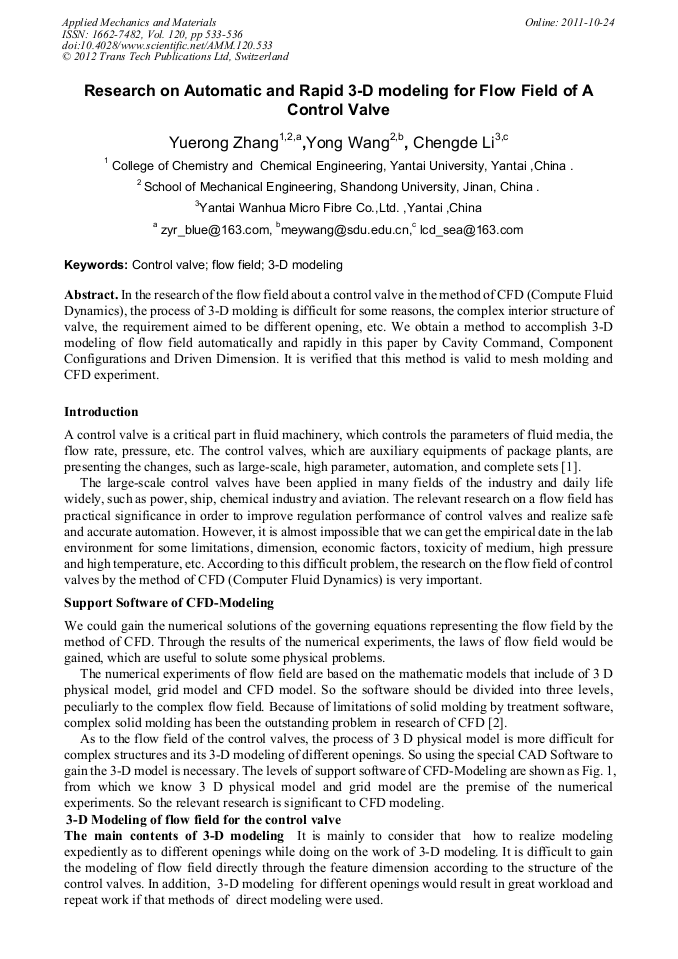

  Abstract

In the research of the flow field about a control valve in the method of CFD (Compute Fluid Dynamics), the process of 3-D molding is difficult for some reasons, the complex interior structure of valve, the requirement aimed to be different opening, etc. We obtain a method to accomplish 3-D modeling of flow field automatically and rapidly in this paper by Cavity Command, Component Configurations and Driven Dimension. It is verified that this method is valid to mesh molding and CFD experiment.

  Info
Periodical
Chapter
Chapter 4: Equipment Manufacturing
Edited by
Jiuba Wen, Fuxiao Chen, Ye Han and Huixuan Zhang
Pages
533-536
DOI
10.4028/www.scientific.net/AMM.120.533
Citation
Y. R. Zhang, Y. Wang, C. D. Li, "Research on Automatic and Rapid 3-D Modeling for Flow Field of a Control Valve", Applied Mechanics and Materials, Vol. 120, pp. 533-536, 2012
