Paper Title:

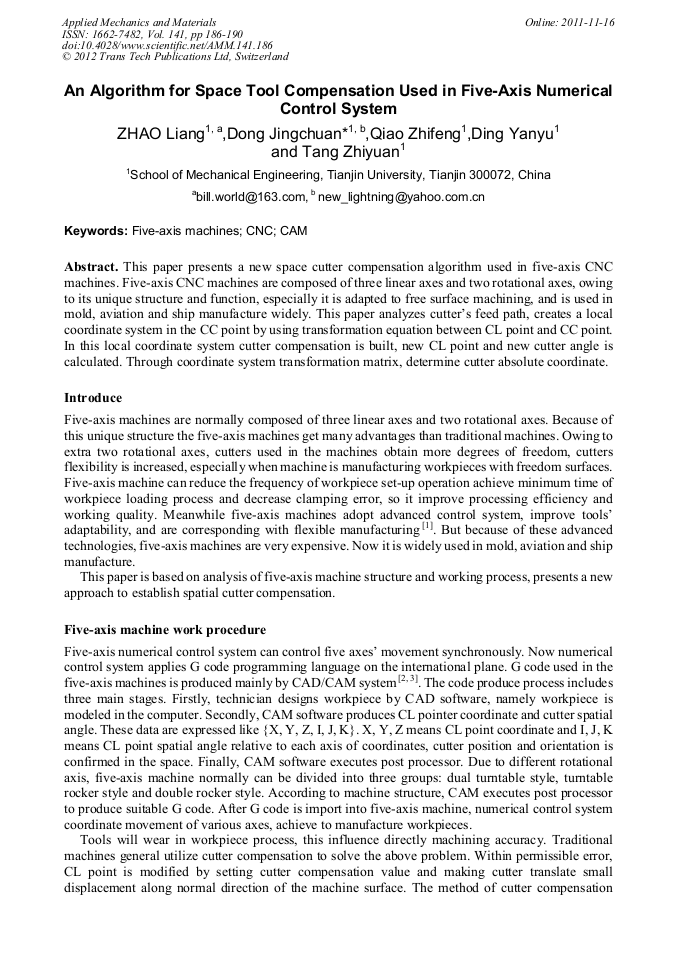

An Algorithm for Space Tool Compensation Used in Five-Axis Numerical Control System
  Abstract

This paper presents a new space cutter compensation algorithm used in five-axis CNC machines. Five-axis CNC machines are composed of three linear axes and two rotational axes, owing to its unique structure and function, especially it is adapted to free surface machining, and is used in mold, aviation and ship manufacture widely. This paper analyzes cutter’s feed path, creates a local coordinate system in the CC point by using transformation equation between CL point and CC point. In this local coordinate system cutter compensation is built, new CL point and new cutter angle is calculated. Through coordinate system transformation matrix, determine cutter absolute coordinate.

  Info
Periodical
Chapter
Chapter 3: Functional Manufacturing and Information Technology
Edited by
Hun Guo, Taiyong Wang, Zeyu Weng, Weidong Jin, Shaoze Yan, Xuda Qin, Guofeng Wang, Qingjian Liu and Zijing Wang
Pages
186-190
DOI
10.4028/www.scientific.net/AMM.141.186
Citation
L. Zhao, J. C. Dong, Z. F. Qiao, Y. Y. Ding, Z. Y. Tang, "An Algorithm for Space Tool Compensation Used in Five-Axis Numerical Control System", Applied Mechanics and Materials, Vol. 141, pp. 186-190, 2012
Online since
November 2011
Export
Price
$32.00
