Paper Title:

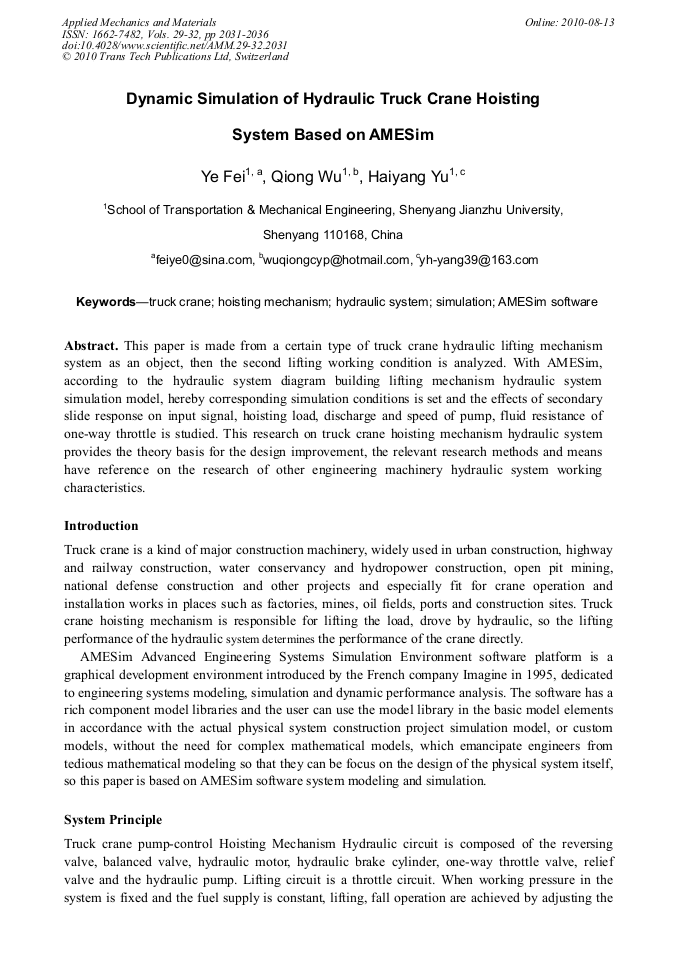

Dynamic Simulation of Hydraulic Truck Crane Hoisting System Based on AMESim
  Abstract

This paper is made from a certain type of truck crane hydraulic lifting mechanism system as an object, then the second lifting working condition is analyzed. With AMESim, according to the hydraulic system diagram building lifting mechanism hydraulic system simulation model, hereby corresponding simulation conditions is set and the effects of secondary slide response on input signal, hoisting load, discharge and speed of pump, fluid resistance of one-way throttle is studied. This research on truck crane hoisting mechanism hydraulic system provides the theory basis for the design improvement, the relevant research methods and means have reference on the research of other engineering machinery hydraulic system working characteristics.

  Info
Periodical
Edited by
Honghua Tan
Pages
2031-2036
DOI
10.4028/www.scientific.net/AMM.29-32.2031
Citation
Y. Fei, Q. Wu, H. Y. Yu, "Dynamic Simulation of Hydraulic Truck Crane Hoisting System Based on AMESim", Applied Mechanics and Materials, Vols. 29-32, pp. 2031-2036, 2010
Online since
August 2010
Export
Price
$32.00
