Paper Title:

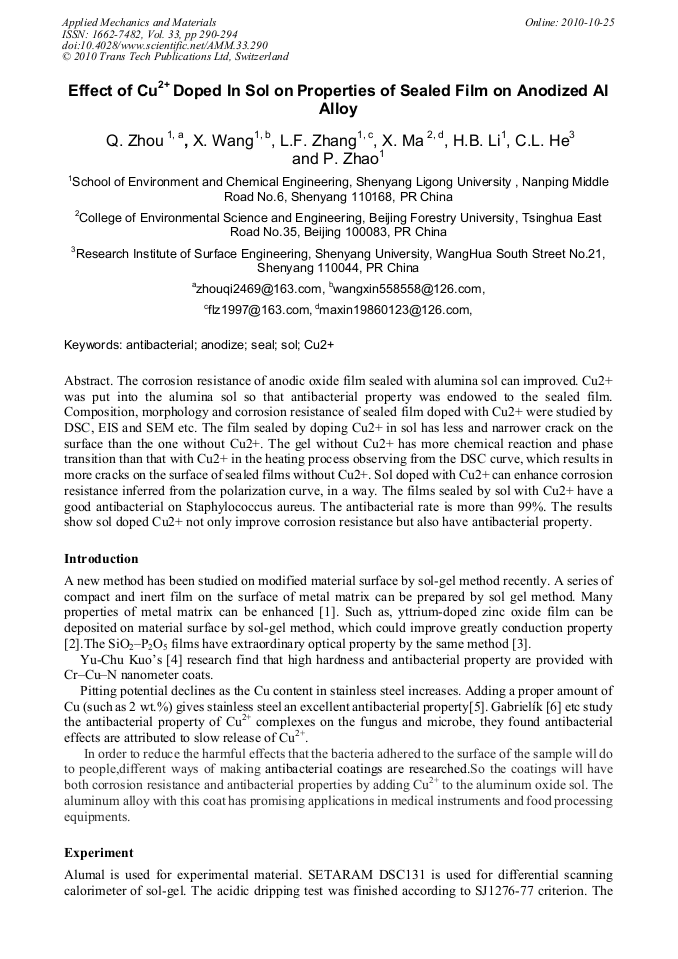

Effect of Cu2+ Doped in Sol on Properties of Sealed Film on Anodized Al Alloy
  Abstract

The corrosion resistance of anodic oxide film sealed with alumina sol can improved. Cu2+ was put into the alumina sol so that antibacterial property was endowed to the sealed film. Composition, morphology and corrosion resistance of sealed film doped with Cu2+ were studied by DSC, EIS and SEM etc. The film sealed by doping Cu2+ in sol has less and narrower crack on the surface than the one without Cu2+. The gel without Cu2+ has more chemical reaction and phase transition than that with Cu2+ in the heating process observing from the DSC curve, which results in more cracks on the surface of sealed films without Cu2+. Sol doped with Cu2+ can enhance corrosion resistance inferred from the polarization curve, in a way. The films sealed by sol with Cu2+ have a good antibacterial on Staphylococcus aureus. The antibacterial rate is more than 99%. The results show sol doped Cu2+ not only improve corrosion resistance but also have antibacterial property.

  Info
Periodical
Edited by
Dunwen Zuo, Hun Guo, Hongli Xu, Chun Su, Chunjie Liu and Weidong Jin
Pages
290-294
DOI
10.4028/www.scientific.net/AMM.33.290
Citation
Q. Zhou, X. Wang, L. F. Zhang, X. Ma, H.B. Li, C.L. He, P. Zhao, "Effect of Cu2+ Doped in Sol on Properties of Sealed Film on Anodized Al Alloy", Applied Mechanics and Materials, Vol. 33, pp. 290-294, 2010
Online since
October 2010
Export
Price
$32.00
