Paper Title:
The Mode and Structural Design of Venting System for Injection Mold
  Abstract

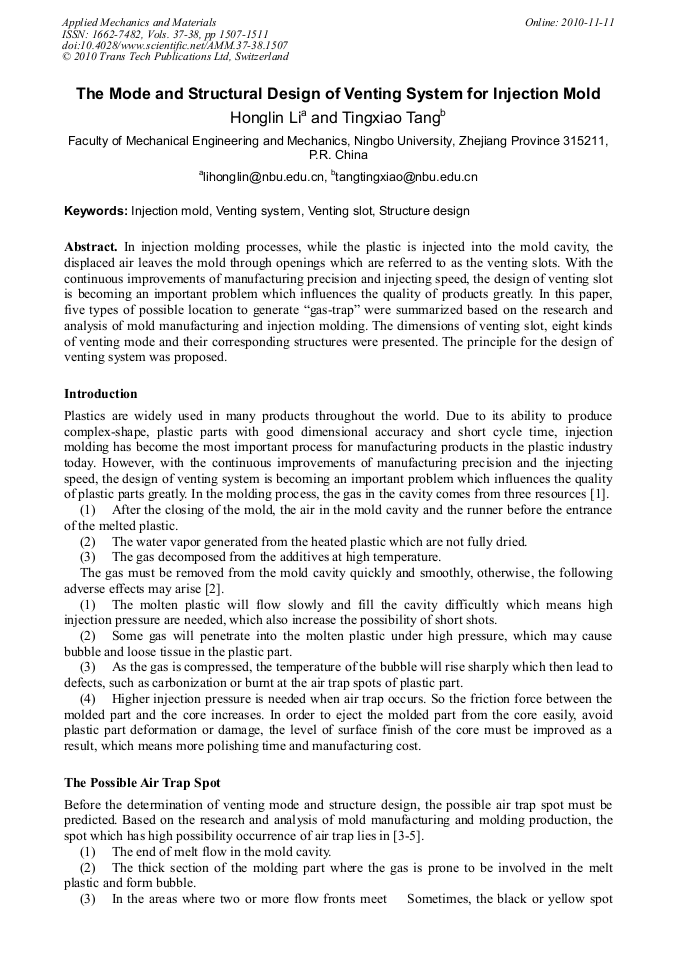

In injection molding processes, while the plastic is injected into the mold cavity, the displaced air leaves the mold through openings which are referred to as the venting slots. With the continuous improvements of manufacturing precision and injecting speed, the design of venting slot is becoming an important problem which influences the quality of products greatly. In this paper, five types of possible location to generate “gas-trap” were summarized based on the research and analysis of mold manufacturing and injection molding. The dimensions of venting slot, eight kinds of venting mode and their corresponding structures were presented. The principle for the design of venting system was proposed.

  Info
Periodical
Edited by
Yi-Min Deng, Aibing Yu, Weihua Li and Di Zheng
Pages
1507-1511
DOI
10.4028/www.scientific.net/AMM.37-38.1507
Citation
H. L. Li, T. X. Tang, "The Mode and Structural Design of Venting System for Injection Mold", Applied Mechanics and Materials, Vols. 37-38, pp. 1507-1511, 2010
Online since
November 2010
