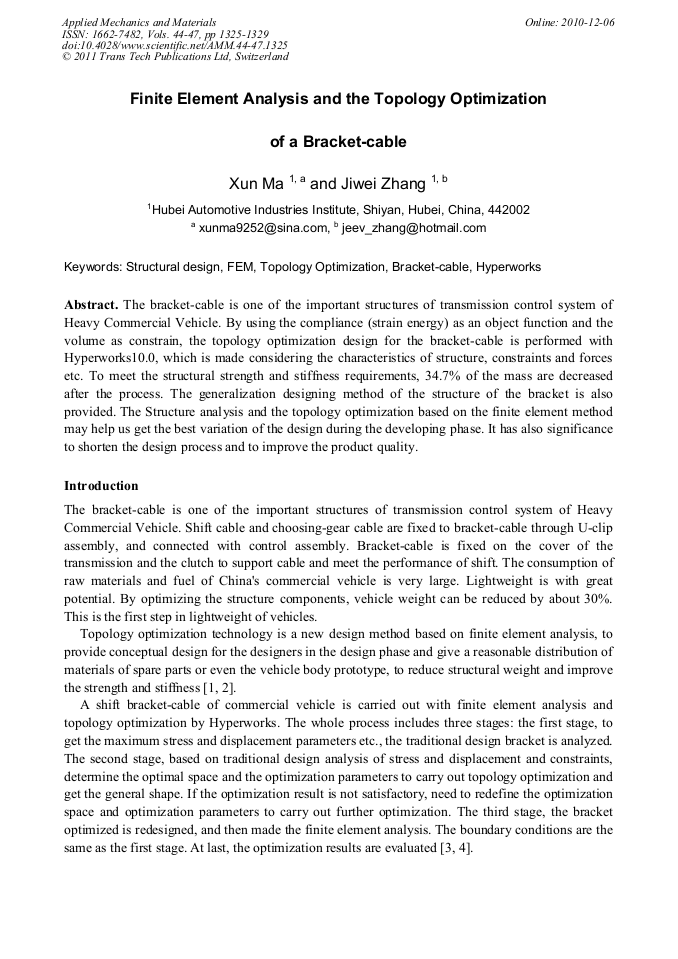

Paper Title:
Finite Element Analysis and the Topology Optimization of a Bracket-Cable
  Abstract

The bracket-cable is one of the important structures of transmission control system of Heavy Commercial Vehicle. By using the compliance (strain energy) as an object function and the volume as constrain, the topology optimization design for the bracket-cable is performed with Hyperworks10.0, which is made considering the characteristics of structure, constraints and forces etc. To meet the structural strength and stiffness requirements, 34.7% of the mass are decreased after the process. The generalization designing method of the structure of the bracket is also provided. The Structure analysis and the topology optimization based on the finite element method may help us get the best variation of the design during the developing phase. It has also significance to shorten the design process and to improve the product quality.

  Info
Periodical
Edited by
Ran Chen
Pages
1325-1329
DOI
10.4028/www.scientific.net/AMM.44-47.1325
Citation
X. Ma, J. W. Zhang, "Finite Element Analysis and the Topology Optimization of a Bracket-Cable", Applied Mechanics and Materials, Vols. 44-47, pp. 1325-1329, 2011
Online since
December 2010
Authors
Export
Price
$32.00
