Paper Title:
Study on the Serial Design of Chain Wheel of the Roller Chain Based on Pro/E
  Abstract

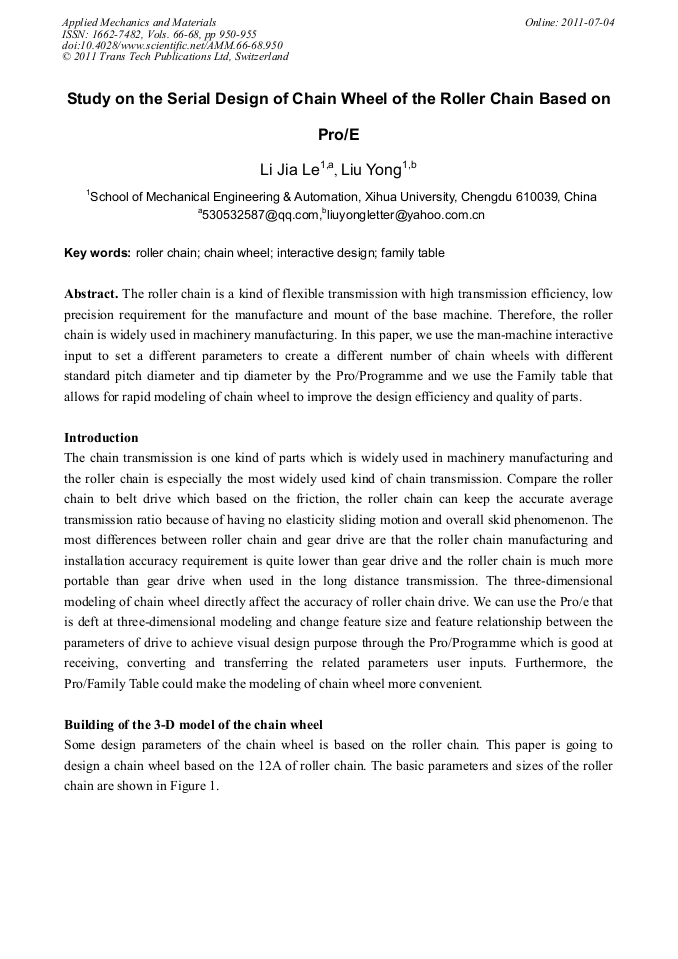

The roller chain is a kind of flexible transmission with high transmission efficiency, low precision requirement for the manufacture and mount of the base machine. Therefore, the roller chain is widely used in machinery manufacturing. In this paper, we use the man-machine interactive input to set a different parameters to create a different number of chain wheels with different standard pitch diameter and tip diameter by the Pro/Programme and we use the Family table that allows for rapid modeling of chain wheel to improve the design efficiency and quality of parts.

  Info
Periodical
Edited by
Honghua Tan
Pages
950-955
DOI
10.4028/www.scientific.net/AMM.66-68.950
Citation
L. J. Le, L. Yong, "Study on the Serial Design of Chain Wheel of the Roller Chain Based on Pro/E", Applied Mechanics and Materials, Vols. 66-68, pp. 950-955, 2011
Online since
July 2011
