Paper Title:

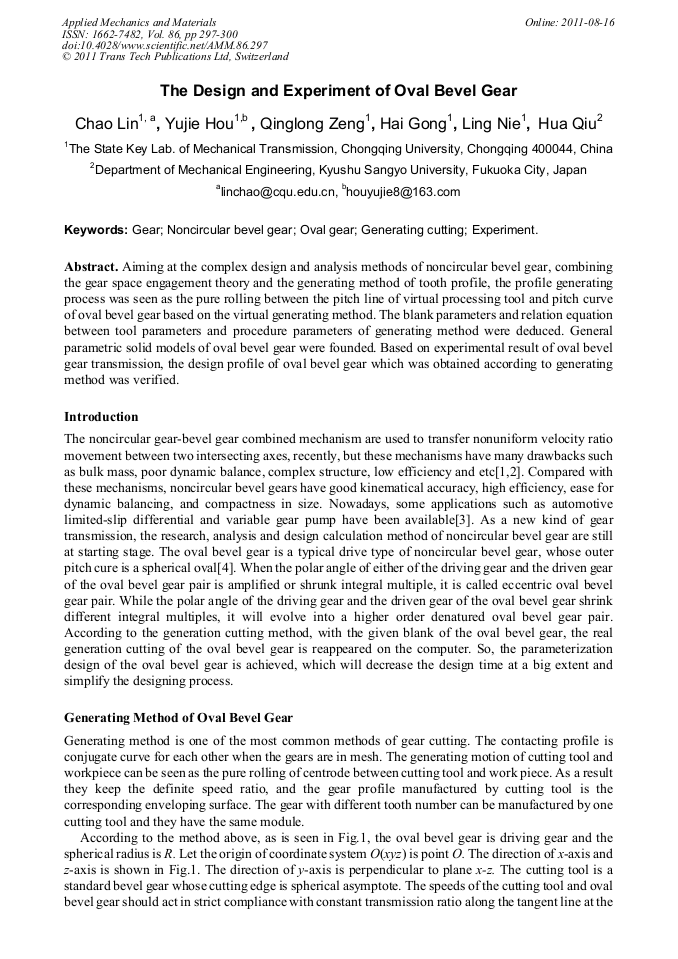

The Design and Experiment of Oval Bevel Gear
  Abstract

Aiming at the complex design and analysis methods of noncircular bevel gear, combining the gear space engagement theory and the generating method of tooth profile, the profile generating process was seen as the pure rolling between the pitch line of virtual processing tool and pitch curve of oval bevel gear based on the virtual generating method. The blank parameters and relation equation between tool parameters and procedure parameters of generating method were deduced. General parametric solid models of oval bevel gear were founded. Based on experimental result of oval bevel gear transmission, the design profile of oval bevel gear which was obtained according to generating method was verified.

  Info
Periodical
Edited by
Zeyong Yin, Chengyu Jiang, Datong Qin, Peixin Qiao and Geng Liu
Pages
297-300
DOI
10.4028/www.scientific.net/AMM.86.297
Citation
C. Lin, Y. J. Hou, Q. L. Zeng, H. Gong, L. Nie, H. Qiu, "The Design and Experiment of Oval Bevel Gear", Applied Mechanics and Materials, Vol. 86, pp. 297-300, 2011
Online since
August 2011
