Paper Title:
Precision Involute Gearboxes

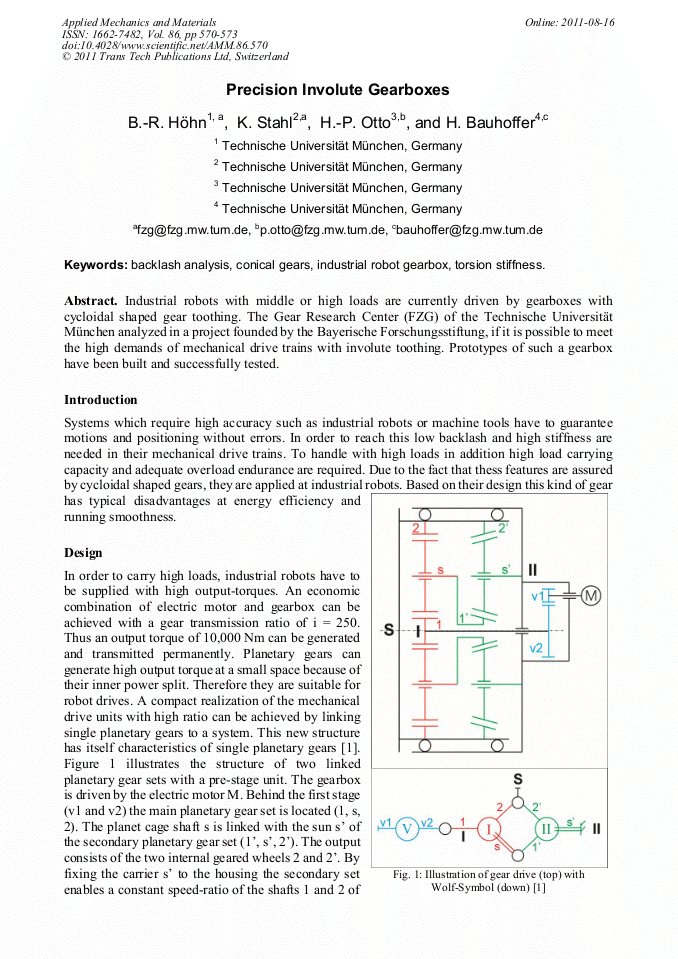

  Abstract

Industrial robots with middle or high loads are currently driven by gearboxes with cycloidal shaped gear toothing. The Gear Research Center (FZG) of the Technische Universität München analyzed in a project founded by the Bayerische Forschungsstiftung, if it is possible to meet the high demands of mechanical drive trains with involute toothing. Prototypes of such a gearbox have been built and successfully tested.

  Info
Periodical
Edited by
Zeyong Yin, Chengyu Jiang, Datong Qin, Peixin Qiao and Geng Liu
Pages
570-573
DOI
10.4028/www.scientific.net/AMM.86.570
Citation
B. R. Höhn, K. Stahl, H.P. Otto, H. Bauhoffer, "Precision Involute Gearboxes", Applied Mechanics and Materials, Vol. 86, pp. 570-573, 2011
Online since
August 2011
