Paper Title:

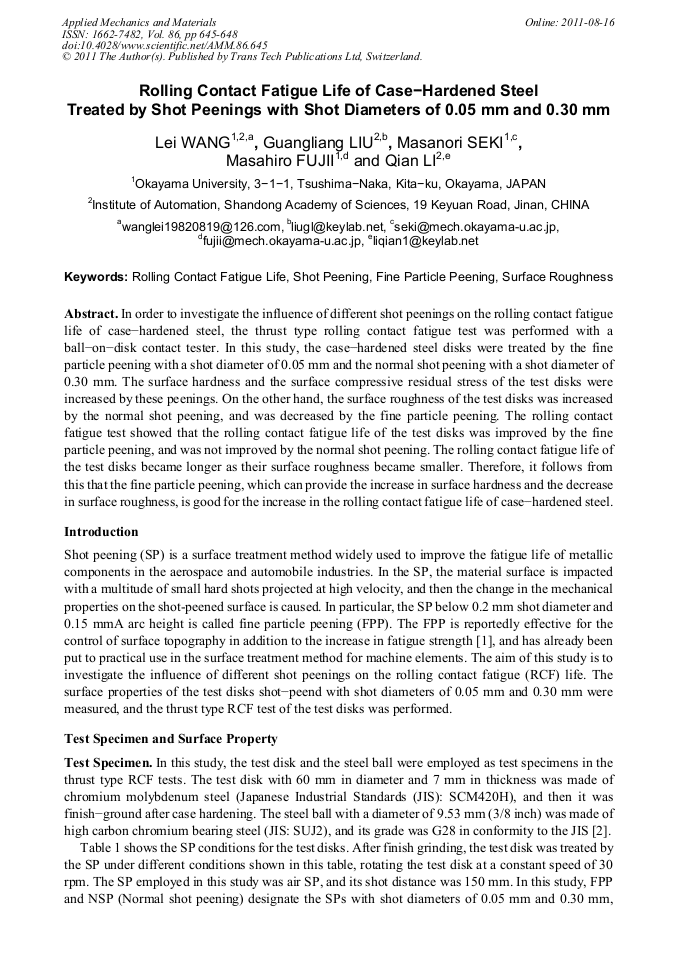

Rolling Contact Fatigue Life of Case−Hardened Steel Treated by Shot Peenings with Shot Diameters of 0.05 mm and 0.30 mm
  Abstract

In order to investigate the influence of different shot peenings on the rolling contact fatigue life of case−hardened steel, the thrust type rolling contact fatigue test was performed with a ball−on−disk contact tester. In this study, the case−hardened steel disks were treated by the fine particle peening with a shot diameter of 0.05 mm and the normal shot peening with a shot diameter of 0.30 mm. The surface hardness and the surface compressive residual stress of the test disks were increased by these peenings. On the other hand, the surface roughness of the test disks was increased by the normal shot peening, and was decreased by the fine particle peening. The rolling contact fatigue test showed that the rolling contact fatigue life of the test disks was improved by the fine particle peening, and was not improved by the normal shot peening. The rolling contact fatigue life of the test disks became longer as their surface roughness became smaller. Therefore, it follows from this that the fine particle peening, which can provide the increase in surface hardness and the decrease in surface roughness, is good for the increase in the rolling contact fatigue life of case−hardened steel.

  Info
Periodical
Edited by
Zeyong Yin, Chengyu Jiang, Datong Qin, Peixin Qiao and Geng Liu
Pages
645-648
DOI
10.4028/www.scientific.net/AMM.86.645
Citation
L. Wang, G. L. Liu, M. Seki, M. Fujii, Q. Li, "Rolling Contact Fatigue Life of Case−Hardened Steel Treated by Shot Peenings with Shot Diameters of 0.05 mm and 0.30 mm", Applied Mechanics and Materials, Vol. 86, pp. 645-648, 2011
Online since
August 2011
Export
Share

In order to see related information, you need to Login.

In order to see related information, you need to Login.

Authors: Kwon Yong Lee, Hwan Kim, Dae Joon Kim, Myung Hyun Lee, Won Seon Seo
Abstract:The sliding wear behavior of ultra high molecular weight polyethylene (UHMWPE) was examined on a novel low temperature degradation-free...
625
Authors: Roberto Chiesa, Giulio Cotogno, Matteo Franchi, Stefania Rivetti, Uwe Holzwarth
606
Authors: A. Gazawi, De Liang Zhang, K.L. Pickering, Aamir Mukhtar
Abstract:Ultrafine grained Al-4wt%Cu-(2.5-10) vol.% SiC metal matrix composite powders were produced from a mixture of Al, Cu and SiC powders using...
208
Authors: Shigeomi Koshimizu
Chapter 2: Turning, Milling and Drilling
Abstract:Glass disks are used as substrates for the recording media in magnetic disk devices. To mass produce glass disks, a technology is required...
436
Authors: Yi Li Wang, Zheng Li Duan, Cheng Yuan Lu
Chapter 1: Geotechnical Engineering
Abstract:According to the actual work effect of the disk piles,a model test equipment is designed to research load transfer mechanism of the disk...
205
