Paper Title:
A Primitive Blocking Study of Reserves’ Graphs Using Computer-Aided Design
  Abstract

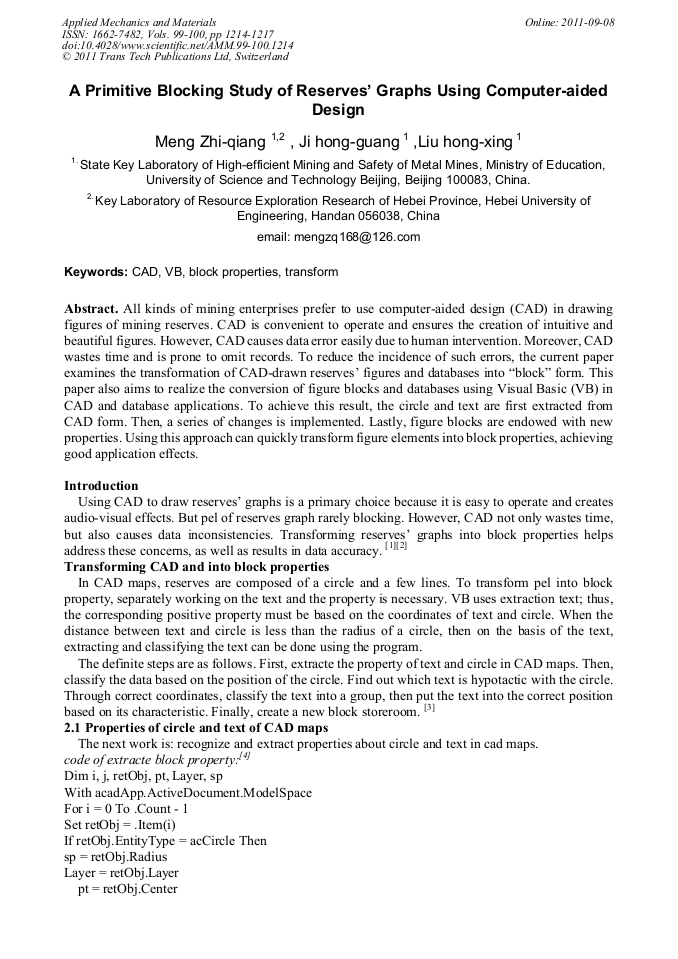

All kinds of mining enterprises prefer to use computer-aided design (CAD) in drawing figures of mining reserves. CAD is convenient to operate and ensures the creation of intuitive and beautiful figures. However, CAD causes data error easily due to human intervention. Moreover, CAD wastes time and is prone to omit records. To reduce the incidence of such errors, the current paper examines the transformation of CAD-drawn reserves’ figures and databases into “block” form. This paper also aims to realize the conversion of figure blocks and databases using Visual Basic (VB) in CAD and database applications. To achieve this result, the circle and text are first extracted from CAD form. Then, a series of changes is implemented. Lastly, figure blocks are endowed with new properties. Using this approach can quickly transform figure elements into block properties, achieving good application effects.

  Info
Periodical
Chapter
Chapter 6: Advanced Construction Materials
Edited by
Xuejun Zhou
Pages
1214-1217
DOI
10.4028/www.scientific.net/AMM.99-100.1214
Citation
Z. Q. Meng, H. G. Ji, H. X. Liu, "A Primitive Blocking Study of Reserves’ Graphs Using Computer-Aided Design", Applied Mechanics and Materials, Vols. 99-100, pp. 1214-1217, 2011
Online since
September 2011
