Paper Title:
A Deterministic Method to Predict Geometrical Interference between Grinding Wheel and Workpiece for Ultra-Precision Aspherical Grinding
  Abstract

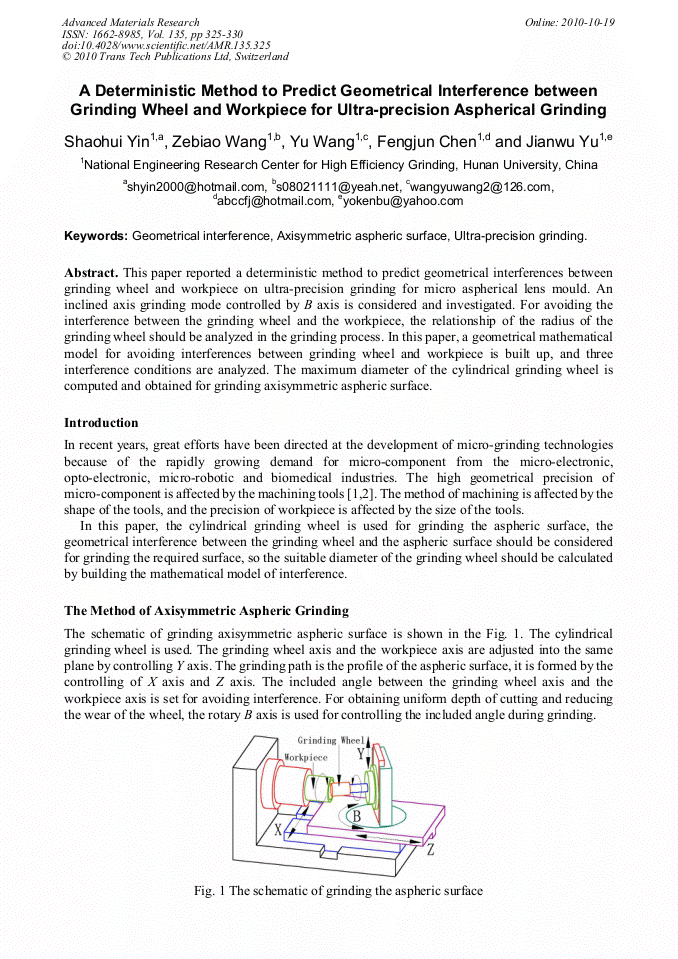

This paper reported a deterministic method to predict geometrical interferences between grinding wheel and workpiece on ultra-precision grinding for micro aspherical lens mould. An inclined axis grinding mode controlled by B axis is considered and investigated. For avoiding the interference between the grinding wheel and the workpiece, the relationship of the radius of the grinding wheel should be analyzed in the grinding process. In this paper, a geometrical mathematical model for avoiding interferences between grinding wheel and workpiece is built up, and three interference conditions are analyzed. The maximum diameter of the cylindrical grinding wheel is computed and obtained for grinding axisymmetric aspheric surface.

  Info
Periodical
Edited by
Qiusheng Yan, Jiabin Lu, Jun Wang and Hang Gao
Pages
325-330
DOI
10.4028/www.scientific.net/AMR.135.325
Citation
S. H. Yin, Z. B. Wang, Y. Wang, F. J. Chen, J. W. Yu, "A Deterministic Method to Predict Geometrical Interference between Grinding Wheel and Workpiece for Ultra-Precision Aspherical Grinding", Advanced Materials Research, Vol. 135, pp. 325-330, 2010
