Paper Title:

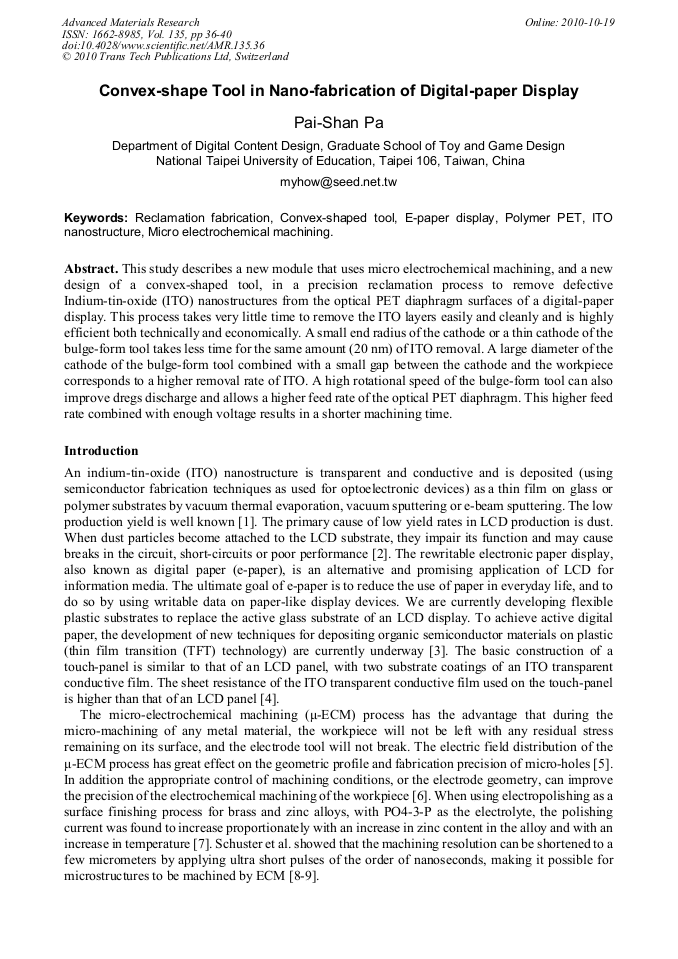

Convex-Shape Tool in Nano-Fabrication of Digital-Paper Display
  Abstract

This study describes a new module that uses micro electrochemical machining, and a new design of a convex-shaped tool, in a precision reclamation process to remove defective Indium-tin-oxide (ITO) nanostructures from the optical PET diaphragm surfaces of a digital-paper display. This process takes very little time to remove the ITO layers easily and cleanly and is highly efficient both technically and economically. A small end radius of the cathode or a thin cathode of the bulge-form tool takes less time for the same amount (20 nm) of ITO removal. A large diameter of the cathode of the bulge-form tool combined with a small gap between the cathode and the workpiece corresponds to a higher removal rate of ITO. A high rotational speed of the bulge-form tool can also improve dregs discharge and allows a higher feed rate of the optical PET diaphragm. This higher feed rate combined with enough voltage results in a shorter machining time.

  Info
Periodical
Edited by
Qiusheng Yan, Jiabin Lu, Jun Wang and Hang Gao
Pages
36-40
DOI
10.4028/www.scientific.net/AMR.135.36
Citation
P. S. Pa, "Convex-Shape Tool in Nano-Fabrication of Digital-Paper Display", Advanced Materials Research, Vol. 135, pp. 36-40, 2010
Online since
October 2010
