Paper Title:
The Dynamic Finite Element Analysis of Table of VM1000 CNC Machining Center
  Abstract

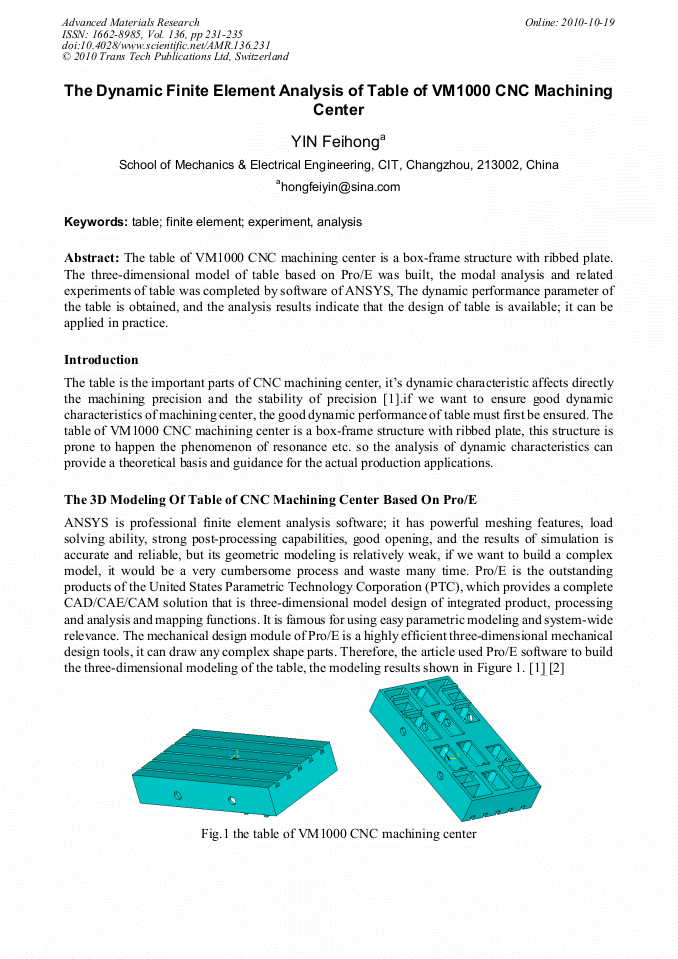

The table of VM1000 CNC machining center is a box-frame structure with ribbed plate. The three-dimensional model of table based on Pro/E was built, the modal analysis and related experiments of table was completed by software of ANSYS, The dynamic performance parameter of the table is obtained, and the analysis results indicate that the design of table is available; it can be applied in practice.
