Paper Title:

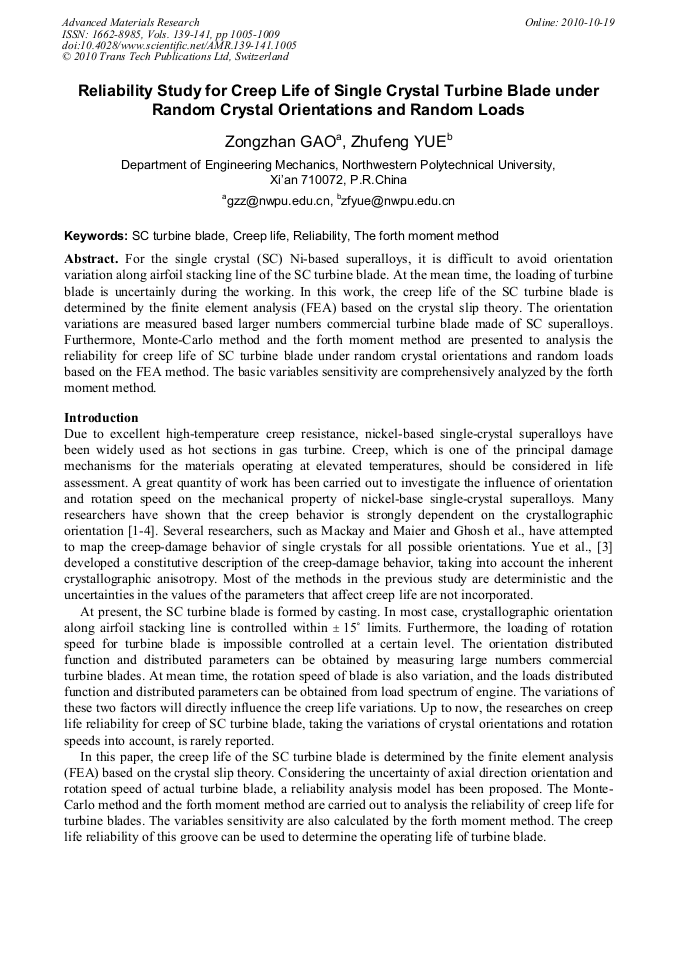

Reliability Study for Creep Life of Single Crystal Turbine Blade under Random Crystal Orientations and Random Loads
  Abstract

For the single crystal (SC) Ni-based superalloys, it is difficult to avoid orientation variation along airfoil stacking line of the SC turbine blade. At the mean time, the loading of turbine blade is uncertainly during the working. In this work, the creep life of the SC turbine blade is determined by the finite element analysis (FEA) based on the crystal slip theory. The orientation variations are measured based larger numbers commercial turbine blade made of SC superalloys. Furthermore, Monte-Carlo method and the forth moment method are presented to analysis the reliability for creep life of SC turbine blade under random crystal orientations and random loads based on the FEA method. The basic variables sensitivity are comprehensively analyzed by the forth moment method.

  Info
Periodical
Advanced Materials Research (Volumes 139-141)
Edited by
Liangchi Zhang, Chunliang Zhang and Tielin Shi
Pages
1005-1009
DOI
10.4028/www.scientific.net/AMR.139-141.1005
Citation
Z. Z. Gao, Z. F. Yue, "Reliability Study for Creep Life of Single Crystal Turbine Blade under Random Crystal Orientations and Random Loads", Advanced Materials Research, Vols. 139-141, pp. 1005-1009, 2010
Online since
October 2010
