Paper Title:

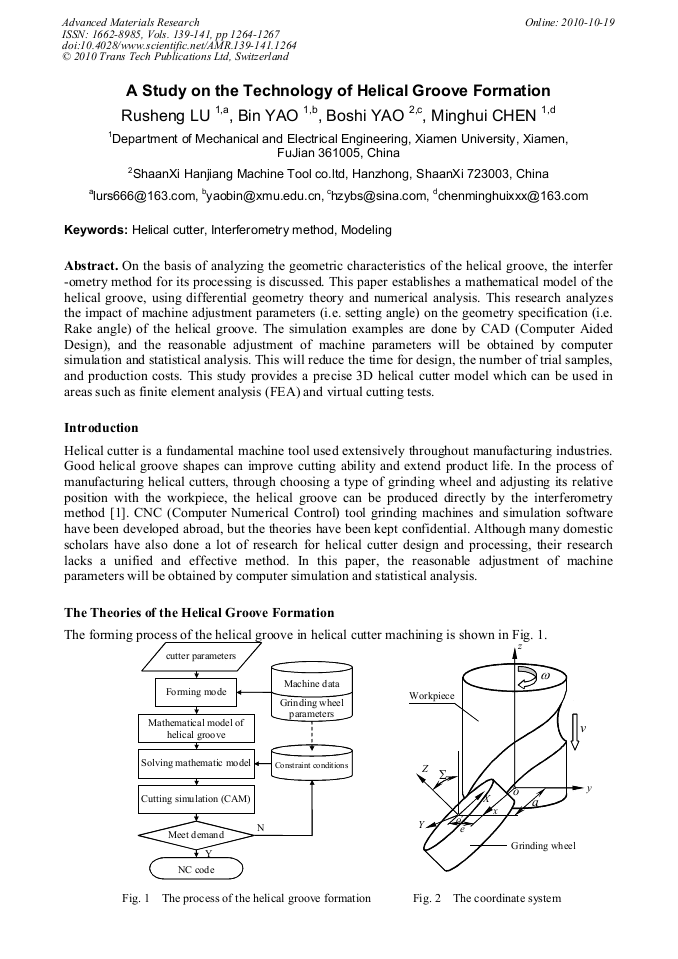

A Study on the Technology of Helical Groove Formation
  Abstract

On the basis of analyzing the geometric characteristics of the helical groove, the interfer -ometry method for its processing is discussed. This paper establishes a mathematical model of the helical groove, using differential geometry theory and numerical analysis. This research analyzes the impact of machine adjustment parameters (i.e. setting angle) on the geometry specification (i.e. Rake angle) of the helical groove. The simulation examples are done by CAD (Computer Aided Design), and the reasonable adjustment of machine parameters will be obtained by computer simulation and statistical analysis. This will reduce the time for design, the number of trial samples, and production costs. This study provides a precise 3D helical cutter model which can be used in areas such as finite element analysis (FEA) and virtual cutting tests.

  Info
Periodical
Advanced Materials Research (Volumes 139-141)
Edited by
Liangchi Zhang, Chunliang Zhang and Tielin Shi
Pages
1264-1267
DOI
10.4028/www.scientific.net/AMR.139-141.1264
Citation
R. S. Lu, B. Yao, B. S. Yao, M. H. Chen, "A Study on the Technology of Helical Groove Formation", Advanced Materials Research, Vols. 139-141, pp. 1264-1267, 2010
Online since
October 2010
Export
Price
$32.00
Share
