Paper Title:

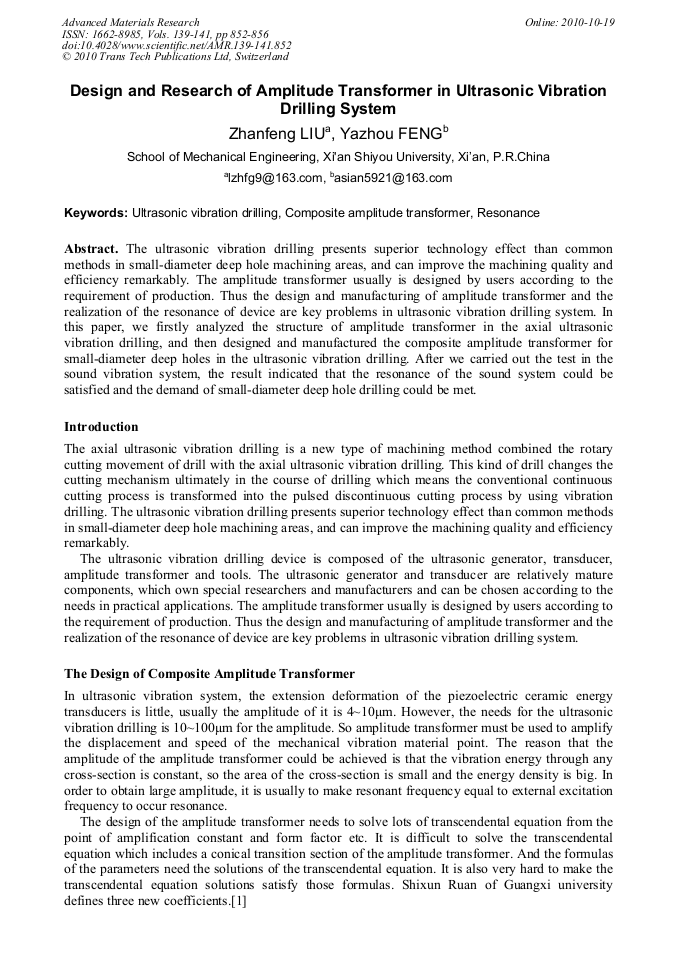

Design and Research of Amplitude Transformer in Ultrasonic Vibration Drilling System
  Abstract

The ultrasonic vibration drilling presents superior technology effect than common methods in small-diameter deep hole machining areas, and can improve the machining quality and efficiency remarkably. The amplitude transformer usually is designed by users according to the requirement of production. Thus the design and manufacturing of amplitude transformer and the realization of the resonance of device are key problems in ultrasonic vibration drilling system. In this paper, we firstly analyzed the structure of amplitude transformer in the axial ultrasonic vibration drilling, and then designed and manufactured the composite amplitude transformer for small-diameter deep holes in the ultrasonic vibration drilling. After we carried out the test in the sound vibration system, the result indicated that the resonance of the sound system could be satisfied and the demand of small-diameter deep hole drilling could be met.

  Info
Periodical
Advanced Materials Research (Volumes 139-141)
Edited by
Liangchi Zhang, Chunliang Zhang and Tielin Shi
Pages
852-856
DOI
10.4028/www.scientific.net/AMR.139-141.852
Citation
Z. F. Liu, Y. Z. Feng, "Design and Research of Amplitude Transformer in Ultrasonic Vibration Drilling System", Advanced Materials Research, Vols. 139-141, pp. 852-856, 2010
Online since
October 2010
Export
Price
$32.00
