Paper Title:
Experimental Study of the Light Scattering Induced by the Surface Roughness of the Ultraprecision Machined Workpiece
  Abstract

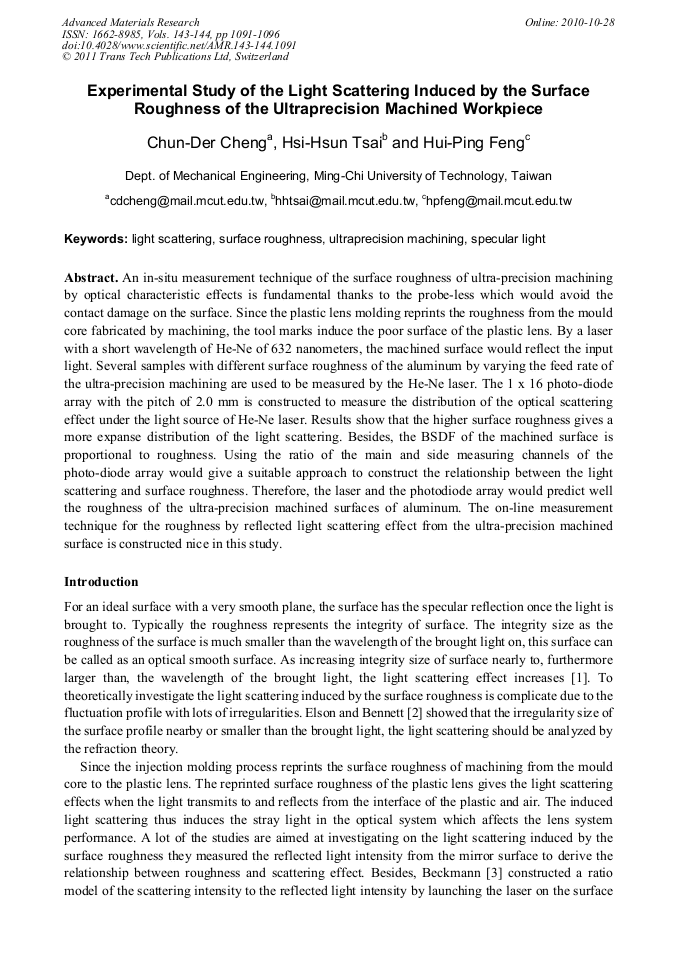

An in-situ measurement technique of the surface roughness of ultra-precision machining by optical characteristic effects is fundamental thanks to the probe-less which would avoid the contact damage on the surface. Since the plastic lens molding reprints the roughness from the mould core fabricated by machining, the tool marks induce the poor surface of the plastic lens. By a laser with a short wavelength of He-Ne of 632 nanometers, the machined surface would reflect the input light. Several samples with different surface roughness of the aluminum by varying the feed rate of the ultra-precision machining are used to be measured by the He-Ne laser. The 1 x 16 photo-diode array with the pitch of 2.0 mm is constructed to measure the distribution of the optical scattering effect under the light source of He-Ne laser. Results show that the higher surface roughness gives a more expanse distribution of the light scattering. Besides, the BSDF of the machined surface is proportional to roughness. Using the ratio of the main and side measuring channels of the photo-diode array would give a suitable approach to construct the relationship between the light scattering and surface roughness. Therefore, the laser and the photodiode array would predict well the roughness of the ultra-precision machined surfaces of aluminum. The on-line measurement technique for the roughness by reflected light scattering effect from the ultra-precision machined surface is constructed nice in this study.

  Info
Periodical
Advanced Materials Research (Volumes 143-144)
Edited by
H. Wang, B.J. Zhang, X.Z. Liu, D.Z. Luo, S.B. Zhong
Pages
1091-1096
DOI
10.4028/www.scientific.net/AMR.143-144.1091
Citation
C. D. Cheng, H. H. Tsai, H. P. Feng, "Experimental Study of the Light Scattering Induced by the Surface Roughness of the Ultraprecision Machined Workpiece", Advanced Materials Research, Vols. 143-144, pp. 1091-1096, 2011
Online since
October 2010
