Paper Title:

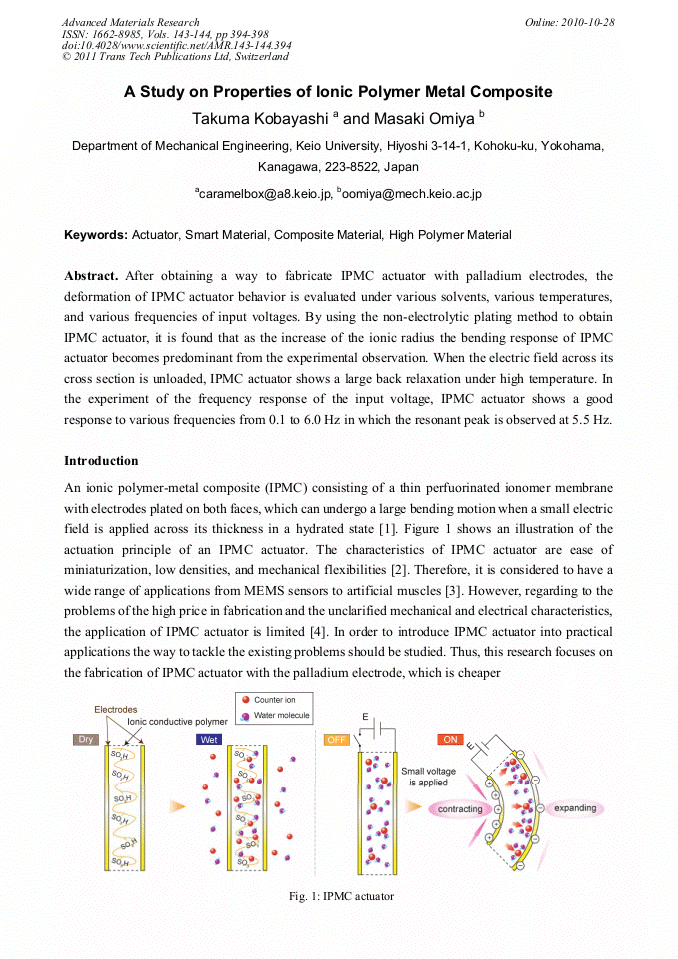

A Study on Properties of Ionic Polymer Metal Composite
  Abstract

After obtaining a way to fabricate IPMC actuator with palladium electrodes, the deformation of IPMC actuator behavior is evaluated under various solvents, various temperatures, and various frequencies of input voltages. By using the non-electrolytic plating method to obtain IPMC actuator, it is found that as the increase of the ionic radius the bending response of IPMC actuator becomes predominant from the experimental observation. When the electric field across its cross section is unloaded, IPMC actuator shows a large back relaxation under high temperature. In the experiment of the frequency response of the input voltage, IPMC actuator shows a good response to various frequencies from 0.1 to 6.0 Hz in which the resonant peak is observed at 5.5 Hz.

  Info
Periodical
Advanced Materials Research (Volumes 143-144)
Edited by
H. Wang, B.J. Zhang, X.Z. Liu, D.Z. Luo, S.B. Zhong
Pages
394-398
DOI
10.4028/www.scientific.net/AMR.143-144.394
Citation
T. Kobayashi, M. Omiya, "A Study on Properties of Ionic Polymer Metal Composite", Advanced Materials Research, Vols. 143-144, pp. 394-398, 2011
Online since
October 2010
