Paper Title:

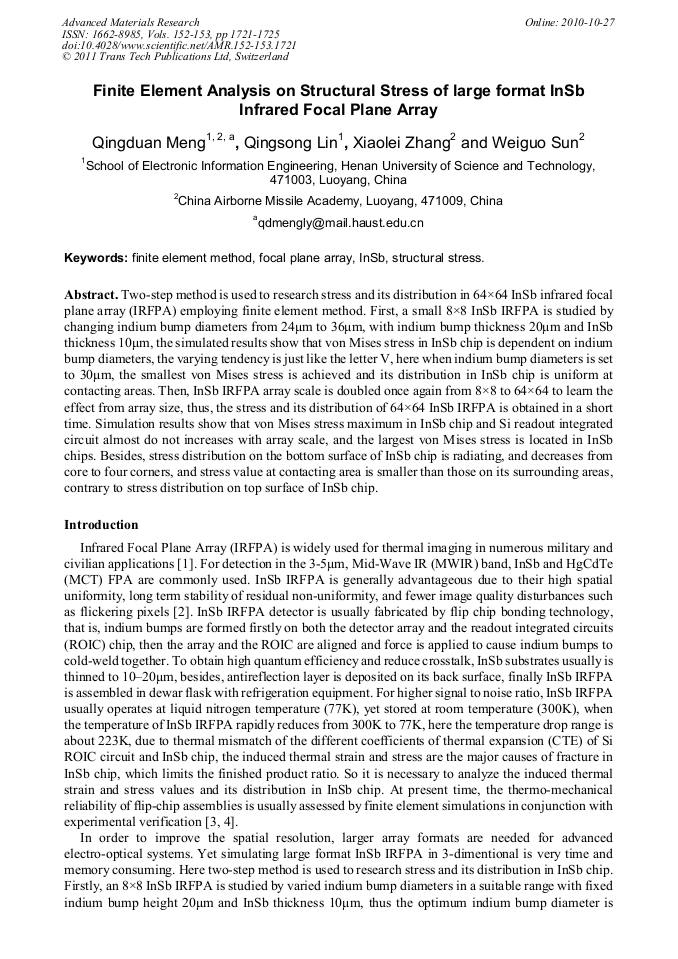

Finite Element Analysis on Structural Stress of Large Format InSb Infrared Focal Plane Array
  Abstract

Two-step method is used to research stress and its distribution in 64×64 InSb infrared focal plane array (IRFPA) employing finite element method. First, a small 8×8 InSb IRFPA is studied by changing indium bump diameters from 24μm to 36μm, with indium bump thickness 20μm and InSb thickness 10μm, the simulated results show that von Mises stress in InSb chip is dependent on indium bump diameters, the varying tendency is just like the letter V, here when indium bump diameters is set to 30μm, the smallest von Mises stress is achieved and its distribution in InSb chip is uniform at contacting areas. Then, InSb IRFPA array scale is doubled once again from 8×8 to 64×64 to learn the effect from array size, thus, the stress and its distribution of 64×64 InSb IRFPA is obtained in a short time. Simulation results show that von Mises stress maximum in InSb chip and Si readout integrated circuit almost do not increases with array scale, and the largest von Mises stress is located in InSb chips. Besides, stress distribution on the bottom surface of InSb chip is radiating, and decreases from core to four corners, and stress value at contacting area is smaller than those on its surrounding areas, contrary to stress distribution on top surface of InSb chip.

  Info
Periodical
Advanced Materials Research (Volumes 152-153)
Edited by
Zhengyi Jiang, Jingtao Han and Xianghua Liu
Pages
1721-1725
DOI
10.4028/www.scientific.net/AMR.152-153.1721
Citation
Q. D. Meng, Q. S. Lin, X. L. Zhang, W. G. Sun, "Finite Element Analysis on Structural Stress of Large Format InSb Infrared Focal Plane Array", Advanced Materials Research, Vols. 152-153, pp. 1721-1725, 2011
Online since
October 2010
