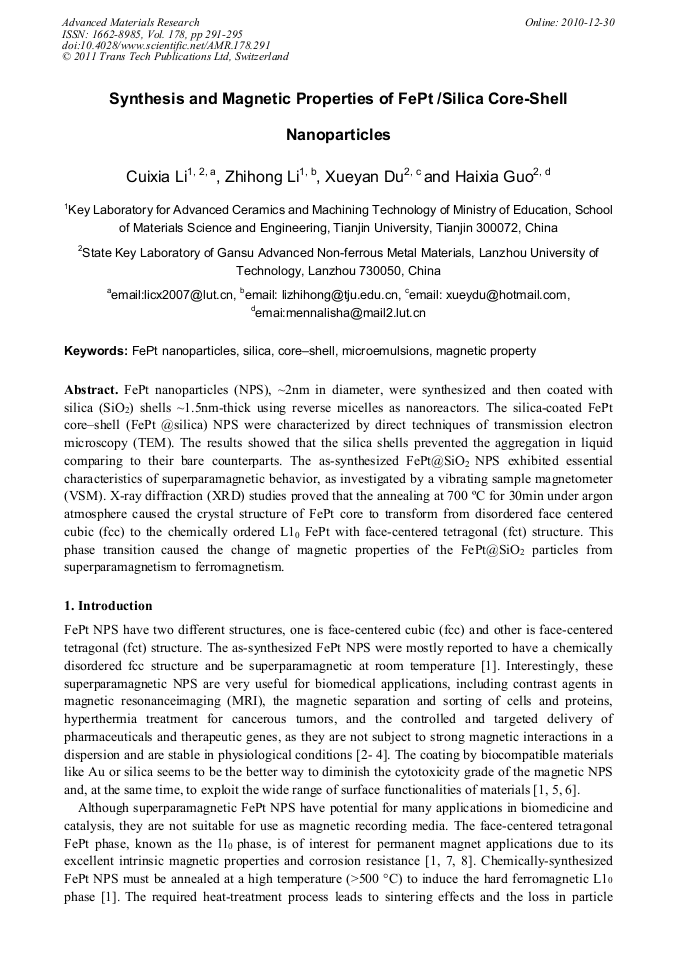

FePt nanoparticles (NPS), ~2nm in diameter, were synthesized and then coated with silica (SiO2) shells ~1.5nm-thick using reverse micelles as nanoreactors. The silica-coated FePt core–shell (FePt @silica) NPS were characterized by direct techniques of transmission electron microscopy (TEM). The results showed that the silica shells prevented the aggregation in liquid comparing to their bare counterparts. The as-synthesized FePt@SiO2 NPS exhibited essential characteristics of superparamagnetic behavior, as investigated by a vibrating sample magnetometer (VSM). X-ray diffraction (XRD) studies proved that the annealing at 700 °C for 30min under argon atmosphere caused the crystal structure of FePt core to transform from disordered face centered cubic (fcc) to the chemically ordered L10 FePt with face-centered tetragonal (fct) structure. This phase transition caused the change of magnetic properties of the FePt@SiO2 particles from superparamagnetism to ferromagnetism.
