Paper Title:

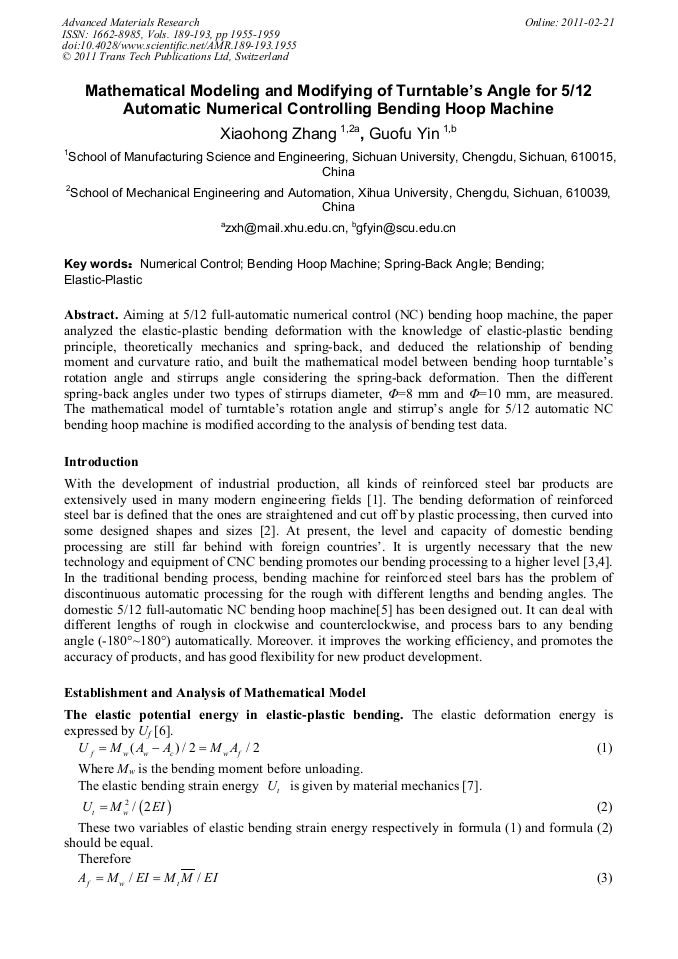

Mathematical Modeling and Modifying of Turntable’s Angle for 5/12 Automatic Numerical Controlling Bending Hoop Machine
  Abstract

Aiming at 5/12 full-automatic numerical control (NC) bending hoop machine, the paper analyzed the elastic-plastic bending deformation with the knowledge of elastic-plastic bending principle, theoretically mechanics and spring-back, and deduced the relationship of bending moment and curvature ratio, and built the mathematical model between bending hoop turntable’s rotation angle and stirrups angle considering the spring-back deformation. Then the different spring-back angles under two types of stirrups diameter, Φ=8 mm and Φ=10 mm, are measured. The mathematical model of turntable’s rotation angle and stirrup’s angle for 5/12 automatic NC bending hoop machine is modified according to the analysis of bending test data.

  Info
Periodical
Advanced Materials Research (Volumes 189-193)
Edited by
Zhengyi Jiang, Shanqing Li, Jianmin Zeng, Xiaoping Liao and Daoguo Yang
Pages
1955-1959
DOI
10.4028/www.scientific.net/AMR.189-193.1955
Citation
X. H. Zhang, G. F. Yin, "Mathematical Modeling and Modifying of Turntable’s Angle for 5/12 Automatic Numerical Controlling Bending Hoop Machine", Advanced Materials Research, Vols. 189-193, pp. 1955-1959, 2011
Online since
February 2011
