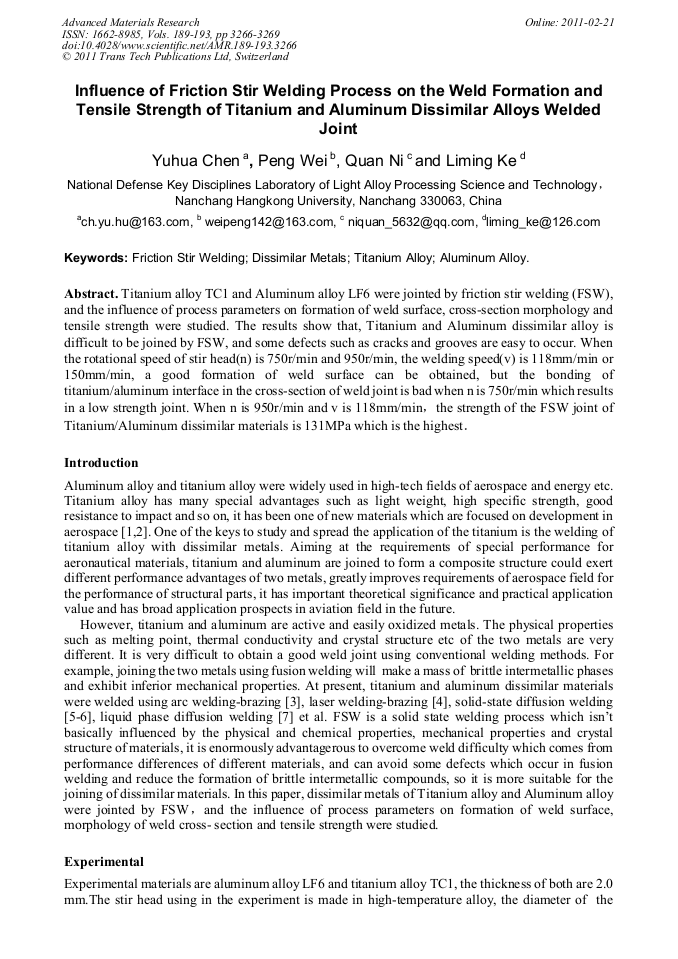

Paper Title:
Influence of Friction Stir Welding Process on the Weld Formation and Tensile Strength of Titanium and Aluminum Dissimilar Alloys Welded Joint
  Abstract

Titanium alloy TC1 and Aluminum alloy LF6 were jointed by friction stir welding (FSW), and the influence of process parameters on formation of weld surface, cross-section morphology and tensile strength were studied. The results show that, Titanium and Aluminum dissimilar alloy is difficult to be joined by FSW, and some defects such as cracks and grooves are easy to occur. When the rotational speed of stir head(n) is 750r/min and 950r/min, the welding speed(v) is 118mm/min or 150mm/min, a good formation of weld surface can be obtained, but the bonding of titanium/aluminum interface in the cross-section of weld joint is bad when n is 750r/min which results in a low strength joint. When n is 950r/min and v is 118mm/min,the strength of the FSW joint of Titanium/Aluminum dissimilar materials is 131MPa which is the highest.

  Info
Periodical
Advanced Materials Research (Volumes 189-193)
Edited by
Zhengyi Jiang, Shanqing Li, Jianmin Zeng, Xiaoping Liao and Daoguo Yang
Pages
3266-3269
DOI
10.4028/www.scientific.net/AMR.189-193.3266
Citation
Y. H. Chen, P. Wei, Q. Ni, L. M. Ke, "Influence of Friction Stir Welding Process on the Weld Formation and Tensile Strength of Titanium and Aluminum Dissimilar Alloys Welded Joint", Advanced Materials Research, Vols. 189-193, pp. 3266-3269, 2011
Online since
February 2011
Export
Price
$32.00
Share

In order to see related information, you need to Login.

In order to see related information, you need to Login.

Authors: V. Saravanan, Nilotpal Banerjee, R. Amuthakkannan, S. Rajakumar
Chapter 3: Materials Properties Research and Processing
Abstract:Dissimilar friction stir welding was carried out between AA6061-T6 and AA7075-T6 aluminum alloys. The effect of tool rotational speed and...
350
Authors: M. Koilraj, A. Sathesh Kumar, D.L. Belgin Paul, S.R. Koteswara Rao
Chapter 1: Materials Engineering
Abstract:In this paper, 6 mm thickness dissimilar aluminium alloys of 5083 (H321) and 2219 (O) butt joints were fabricated successfully by friction...
203
