Paper Title:

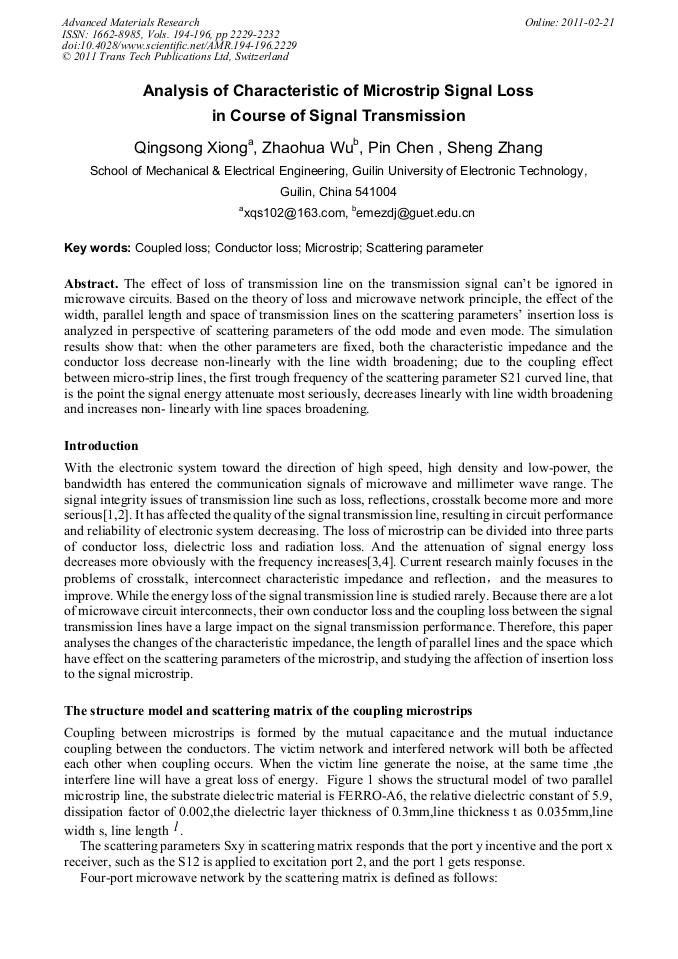

Analysis of Characteristic of Microstrip Signal Loss in Course of Signal Transmission
  Abstract

The effect of loss of transmission line on the transmission signal can’t be ignored in microwave circuits. Based on the theory of loss and microwave network principle, the effect of the width, parallel length and space of transmission lines on the scattering parameters’ insertion loss is analyzed in perspective of scattering parameters of the odd mode and even mode. The simulation results show that: when the other parameters are fixed, both the characteristic impedance and the conductor loss decrease non-linearly with the line width broadening; due to the coupling effect between micro-strip lines, the first trough frequency of the scattering parameter S21 curved line, that is the point the signal energy attenuate most seriously, decreases linearly with line width broadening and increases non- linearly with line spaces broadening.

  Info
Periodical
Advanced Materials Research (Volumes 194-196)
Edited by
Jianmin Zeng, Taosen Li, Shaojian Ma, Zhengyi Jiang and Daoguo Yang
Pages
2229-2232
DOI
10.4028/www.scientific.net/AMR.194-196.2229
Citation
Q. S. Xiong, Z. H. Wu, P. Chen, S. Zhang, "Analysis of Characteristic of Microstrip Signal Loss in Course of Signal Transmission", Advanced Materials Research, Vols. 194-196, pp. 2229-2232, 2011
Online since
February 2011
