Paper Title:
A Comparative Study on Two Kinds of 3D Direct Capacitance Imaging Sensors
  Abstract

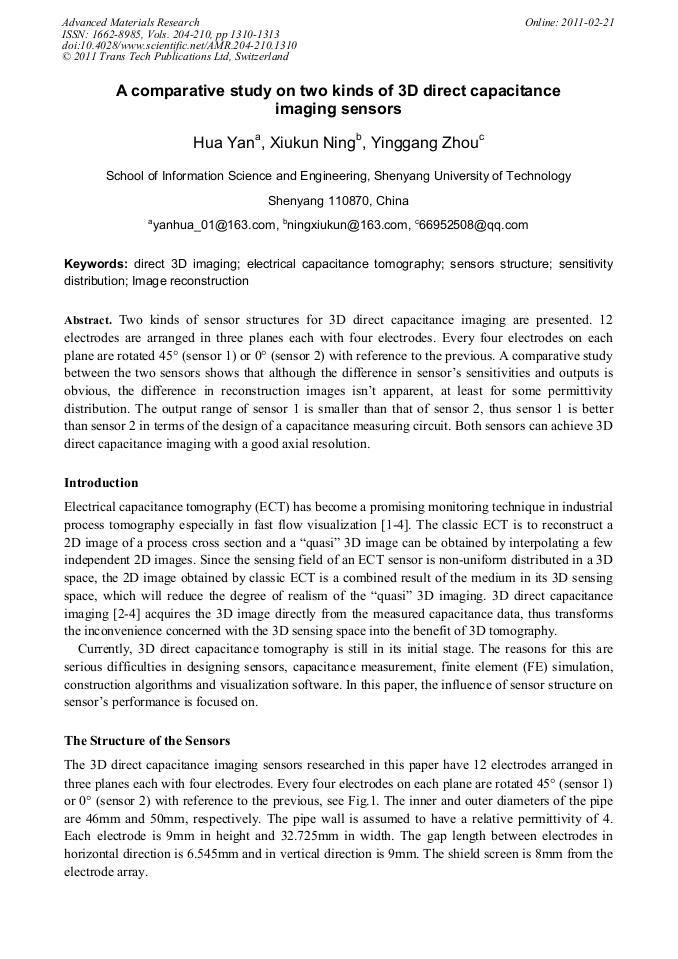

Two kinds of sensor structures for 3D direct capacitance imaging are presented. 12 electrodes are arranged in three planes each with four electrodes. Every four electrodes on each plane are rotated 45° (sensor 1) or 0° (sensor 2) with reference to the previous. A comparative study between the two sensors shows that although the difference in sensor’s sensitivities and outputs is obvious, the difference in reconstruction images isn’t apparent, at least for some permittivity distribution. The output range of sensor 1 is smaller than that of sensor 2, thus sensor 1 is better than sensor 2 in terms of the design of a capacitance measuring circuit. Both sensors can achieve 3D direct capacitance imaging with a good axial resolution.

  Info
Periodical
Advanced Materials Research (Volumes 204-210)
Edited by
Helen Zhang, Gang Shen and David Jin
Pages
1310-1313
DOI
10.4028/www.scientific.net/AMR.204-210.1310
Citation
H. Yan, X. K. Ning, Y. G. Zhou, "A Comparative Study on Two Kinds of 3D Direct Capacitance Imaging Sensors", Advanced Materials Research, Vols. 204-210, pp. 1310-1313, 2011
Online since
February 2011
