Paper Title:

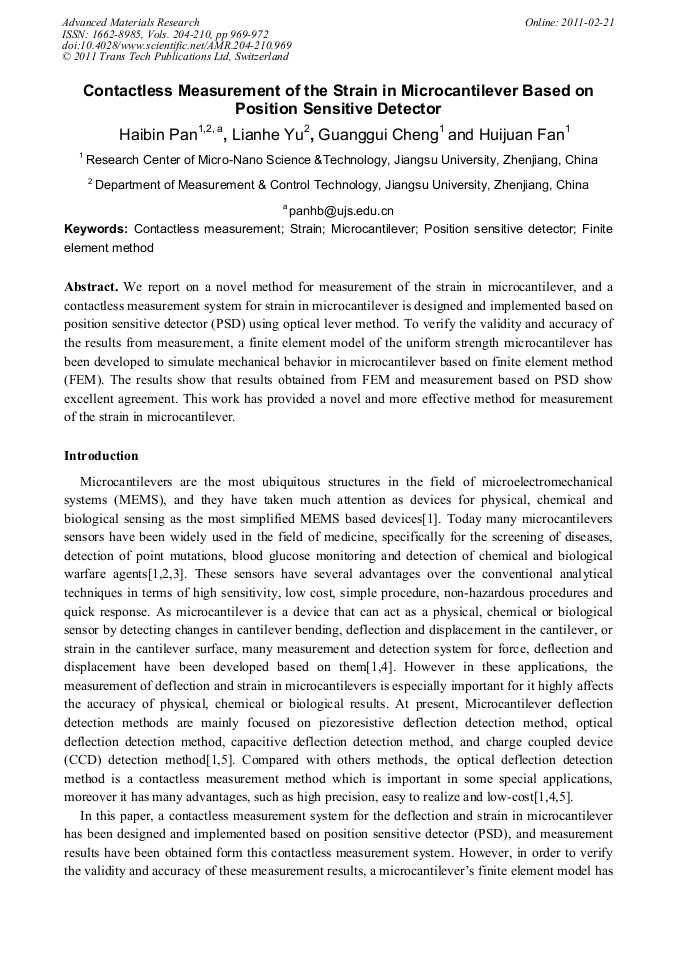

Contactless Measurement of the Strain in Microcantilever Based on Position Sensitive Detector
  Abstract

We report on a novel method for measurement of the strain in microcantilever, and a contactless measurement system for strain in microcantilever is designed and implemented based on position sensitive detector (PSD) using optical lever method. To verify the validity and accuracy of the results from measurement, a finite element model of the uniform strength microcantilever has been developed to simulate mechanical behavior in microcantilever based on finite element method (FEM). The results show that results obtained from FEM and measurement based on PSD show excellent agreement. This work has provided a novel and more effective method for measurement of the strain in microcantilever.

  Info
Periodical
Advanced Materials Research (Volumes 204-210)
Edited by
Helen Zhang, Gang Shen and David Jin
Pages
969-972
DOI
10.4028/www.scientific.net/AMR.204-210.969
Citation
H. B. Pan, L. H. Yu, G. G. Cheng, H. J. Fan, "Contactless Measurement of the Strain in Microcantilever Based on Position Sensitive Detector", Advanced Materials Research, Vols. 204-210, pp. 969-972, 2011
Online since
February 2011
