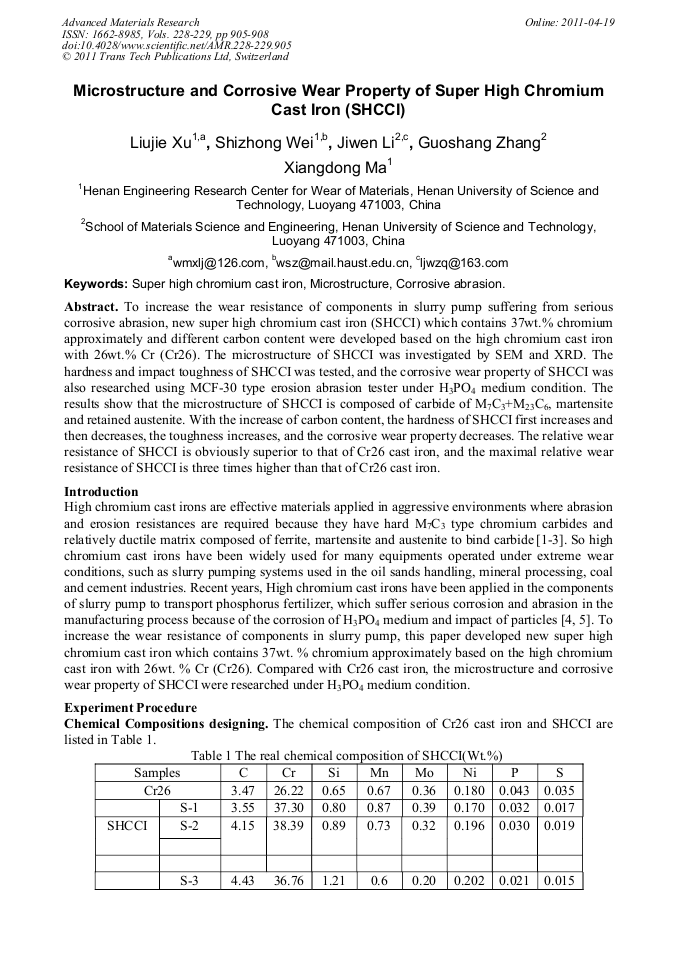

Paper Title:
Microstructure and Corrosive Wear Property of Super High Chromium Cast Iron (SHCCI)
  Abstract

To increase the wear resistance of components in slurry pump suffering from serious corrosive abrasion, new super high chromium cast iron (SHCCI) which contains 37wt.% chromium approximately and different carbon content were developed based on the high chromium cast iron with 26wt.% Cr (Cr26). The microstructure of SHCCI was investigated by SEM and XRD. The hardness and impact toughness of SHCCI was tested, and the corrosive wear property of SHCCI was also researched using MCF-30 type erosion abrasion tester under H3PO4 medium condition. The results show that the microstructure of SHCCI is composed of carbide of M7C3+M23C6, martensite and retained austenite. With the increase of carbon content, the hardness of SHCCI first increases and then decreases, the toughness increases, and the corrosive wear property decreases. The relative wear resistance of SHCCI is obviously superior to that of Cr26 cast iron, and the maximal relative wear resistance of SHCCI is three times higher than that of Cr26 cast iron.

  Info
Periodical
Advanced Materials Research (Volumes 228-229)
Edited by
Quanjie Gao
Pages
905-908
DOI
10.4028/www.scientific.net/AMR.228-229.905
Citation
L. J. Xu, S. Z. Wei, J. W. Li, G. S. Zhang, X. D. Ma, "Microstructure and Corrosive Wear Property of Super High Chromium Cast Iron (SHCCI)", Advanced Materials Research, Vols. 228-229, pp. 905-908, 2011
Online since
April 2011
Export
Price
$32.00
Share

In order to see related information, you need to Login.

In order to see related information, you need to Login.

Authors: Ignacy Wierszyłłowski
Abstract:A significant increase in durability of cryogenically treated tools after quenching was reported by a number of publications [1, 2]. As...
415
Authors: You Ping Ma, Xiu Lan Li, Lei Yang
Abstract:The effect of carbon content on primary austenite stability of high chromium white cast iron(15.0wt.%) was investigated by means of optical...
1684
Authors: Li Yang, Ying Huai Qiang, Fu Shan Chen, Yang Gao, Yun Tian Zhong
Surface Engineering/Coatings
Abstract:To improve wear resistance and service life of boron cast iron cylinder, plasma beam hardening on surface is adopted.Scanning electron...
98
Authors: Yong Qing Ma, Yu Mei Dai, Yu Fen Liang, Xiao Jing Zhang
Chapter 2: Materials Science and Engineering
Abstract:The temper-resistance temperature of Cr-W-Mo-V high carbon medium alloy steels is in a range at 200°C-300°C. Along with increasing C and...
591
Authors: Jin Ming Liu, Jie Liu, Guang Wei Fan, Dong Fang Du, Guo Ping Li, Cheng Jun Chai
A. Environment Related Materials and Photocatalysts
Abstract:Effect of solution treated temperature at 5001100°C on ferrite/austenite ratio and σ phase precipitation has been studied in this paper, and...
3
