Paper Title:

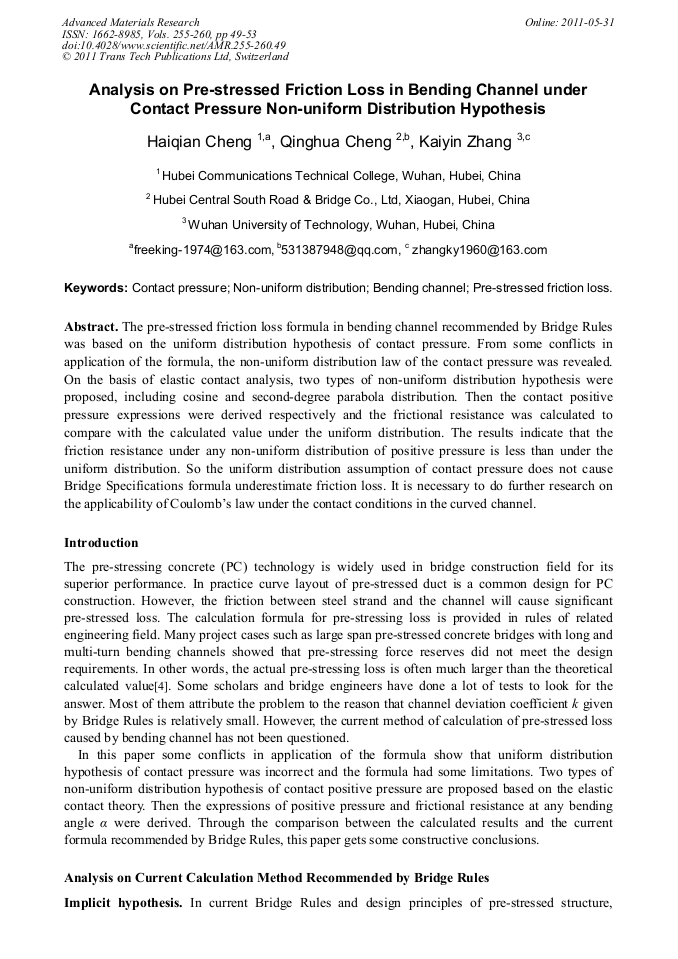

Analysis on Pre-Stressed Friction Loss in Bending Channel under Contact Pressure Non-Uniform Distribution Hypothesis
  Abstract

The pre-stressed friction loss formula in bending channel recommended by Bridge Rules was based on the uniform distribution hypothesis of contact pressure. From some conflicts in application of the formula, the non-uniform distribution law of the contact pressure was revealed. On the basis of elastic contact analysis, two types of non-uniform distribution hypothesis were proposed, including cosine and second-degree parabola distribution. Then the contact positive pressure expressions were derived respectively and the frictional resistance was calculated to compare with the calculated value under the uniform distribution. The results indicate that the friction resistance under any non-uniform distribution of positive pressure is less than under the uniform distribution. So the uniform distribution assumption of contact pressure does not cause Bridge Specifications formula underestimate friction loss. It is necessary to do further research on the applicability of Coulomb’s law under the contact conditions in the curved channel.

  Info
Periodical
Advanced Materials Research (Volumes 255-260)
Edited by
Jingying Zhao
Pages
49-53
DOI
10.4028/www.scientific.net/AMR.255-260.49
Citation
H. Q. Cheng, Q. H. Cheng, K. Y. Zhang, "Analysis on Pre-Stressed Friction Loss in Bending Channel under Contact Pressure Non-Uniform Distribution Hypothesis", Advanced Materials Research, Vols. 255-260, pp. 49-53, 2011
Online since
May 2011
