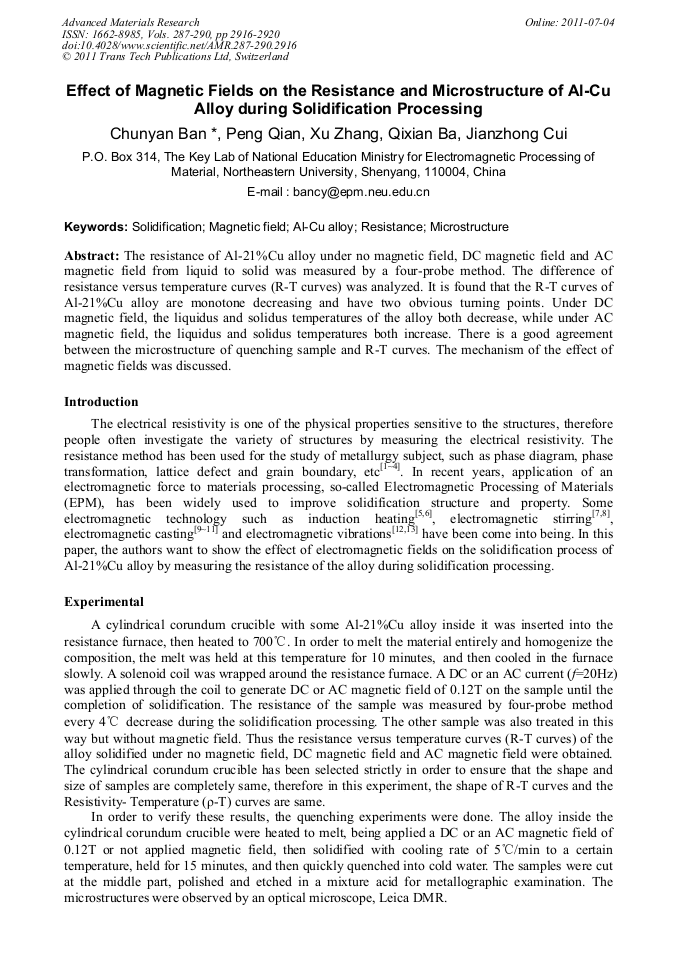

Paper Title:
Effect of Magnetic Fields on the Resistance and Microstructure of Al-Cu Alloy during Solidification Processing
  Abstract

The resistance of Al-21%Cu alloy under no magnetic field, DC magnetic field and AC magnetic field from liquid to solid was measured by a four-probe method. The difference of resistance versus temperature curves (R-T curves) was analyzed. It is found that the R-T curves of Al-21%Cu alloy are monotone decreasing and have two obvious turning points. Under DC magnetic field, the liquidus and solidus temperatures of the alloy both decrease, while under AC magnetic field, the liquidus and solidus temperatures both increase. There is a good agreement between the microstructure of quenching sample and R-T curves. The mechanism of the effect of magnetic fields was discussed.

  Info
Periodical
Advanced Materials Research (Volumes 287-290)
Chapter
Smart/Intelligent Materials/Intelligent Systems
Edited by
Jinglong Bu, Pengcheng Wang, Liqun Ai, Xiaoming Sang, Yungang Li
Pages
2916-2920
DOI
10.4028/www.scientific.net/AMR.287-290.2916
Citation
C. Y. Ban, P. Qian, X. Zhang, Q. X. Ba, J. Z. Cui, "Effect of Magnetic Fields on the Resistance and Microstructure of Al-Cu Alloy during Solidification Processing", Advanced Materials Research, Vols. 287-290, pp. 2916-2920, 2011
Online since
July 2011
Export
Price
$32.00
Share

In order to see related information, you need to Login.

In order to see related information, you need to Login.

Authors: Yong Xue, Zhi Min Zhang, Li Hui Lang, Li Li
Abstract:In the present paper a research has been made on the effect of aging on the microstructure and mechanical properties of AZ80 and ZK60 wrought...
560
Authors: Guo Fa Mi, Cui Fen Dong, Chang Yun Li, Hai Yan Wang
Abstract:Cast, sub-rapidly solidified and rapidly solidified Al-5Fe alloy and Al-5Fe-3Y alloy were respectively prepared by vacuum melting, suction...
2462
Authors: Chang Jiang Song, Yuan Yi Guo, Liang Zhu, Ke Feng Li, Min Yang, Qi Jie Zhai
Abstract:High chromium cast iron alloys are widely used to produce wear resistant components. However, formation of the large carbides restricts their...
44
Authors: Da Zhi Zhao, Fu Xiao Yu, Fang Liu, Ke Zhun He
Chapter 2: Micro / Nano Materials
Abstract:The billets of AlMg0.9Si0.7 alloy, which were cast through the direct chill (DC) casting process of low superheat, were...
549
Authors: Xin Nan Wang, Yue Fei, Xiao Hu Zhou, Zhi Shou Zhu, Jun Li, Guo Qiang Shang, Li Wei Zhu
Abstract:The evolution regularities of microstructure and property of a new metastable β titanium alloy with different solution treatment and aging...
932
