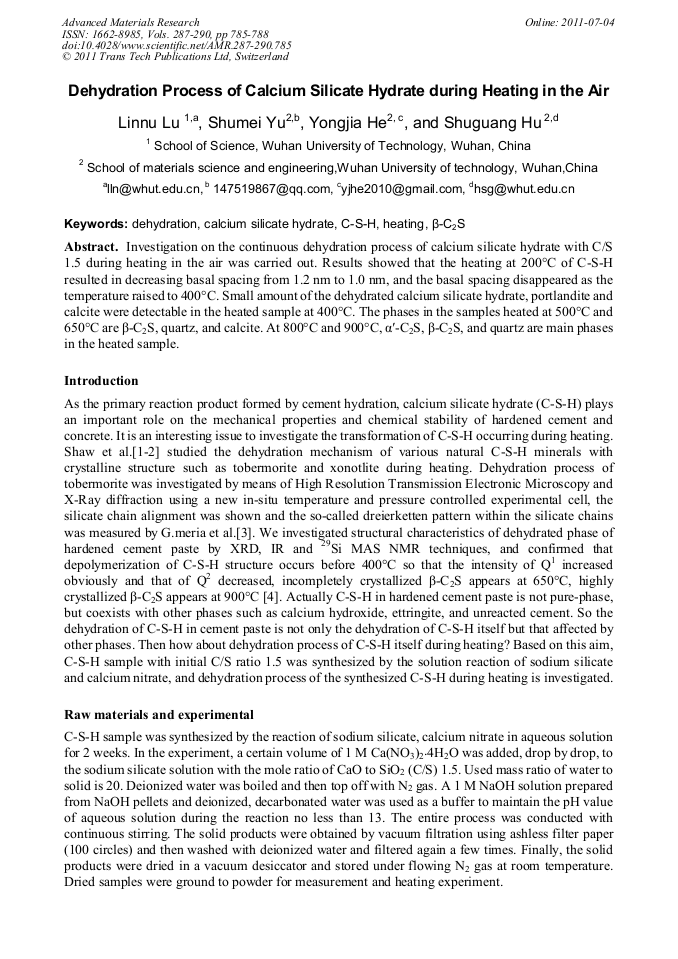

Paper Title:
Dehydration Process of Calcium Silicate Hydrate during Heating in the Air
  Abstract

Investigation on the continuous dehydration process of calcium silicate hydrate with C/S 1.5 during heating in the air was carried out. Results showed that the heating at 200°C of C-S-H resulted in decreasing basal spacing from 1.2 nm to 1.0 nm, and the basal spacing disappeared as the temperature raised to 400°C. Small amount of the dehydrated calcium silicate hydrate, portlandite and calcite were detectable in the heated sample at 400°C. The phases in the samples heated at 500°C and 650°C are β-C2S, quartz, and calcite. At 800°C and 900°C, α′-C2S, β-C2S, and quartz are main phases in the heated sample.

  Info
Periodical
Advanced Materials Research (Volumes 287-290)
Chapter
Building Materials
Edited by
Jinglong Bu, Pengcheng Wang, Liqun Ai, Xiaoming Sang, Yungang Li
Pages
785-788
DOI
10.4028/www.scientific.net/AMR.287-290.785
Citation
L. N. Lu, S. M. Yu, Y. J. He, S. G. Hu, "Dehydration Process of Calcium Silicate Hydrate during Heating in the Air", Advanced Materials Research, Vols. 287-290, pp. 785-788, 2011
Online since
July 2011
Export
Price
$32.00
Share

In order to see related information, you need to Login.

In order to see related information, you need to Login.

Authors: Hua Jun Sun, Wen Chen, Qing Xu, Jing Zhou, Xiao Fang Liu
Abstract:Using Zr(NO3)4.5H2O as Zr source, PZT powder with a single-phase perovskite structure was synthesized by a sol-autocombustion method at a...
219
Authors: Hiroshi Yoshida, Masayuki Takada, Shinzo Yoshikado
Abstract:The relationship between the crystal structure of Bi2O3 and the recovery of the electrical degradation of ZnO varistors was investigated....
209
Authors: Ji Hui Liu, Qi Wang, Jing Li
Abstract:In this paper, the iron ore tailings that the metallurgy castoff can be recycled were adopted to synthesize forsterite refractory materials,...
2090
Authors: Yue Jun Chen, Zhi Fa Wang, Li Xue Yu, Jing Long Bu, Rong Lin Wang, Rui Sheng Wang
Ceramic
Abstract:Fused quartz granule (d50=0.019 mm) was used as raw material, nano-Y2O3 (size<0.08 μm) was used as...
1366
Authors: Yue Jun Chen, Zhi Fa Wang, Jing Long Bu, Li Xue Yu, Rong Lin Wang, Rui Sheng Wang
Chapter 1: Materials Properties
Abstract:Fused quartz powder (size<0.04mm) was used as raw material, nano-Y2O3, nano-CeO2 and...
1418
