Paper Title:

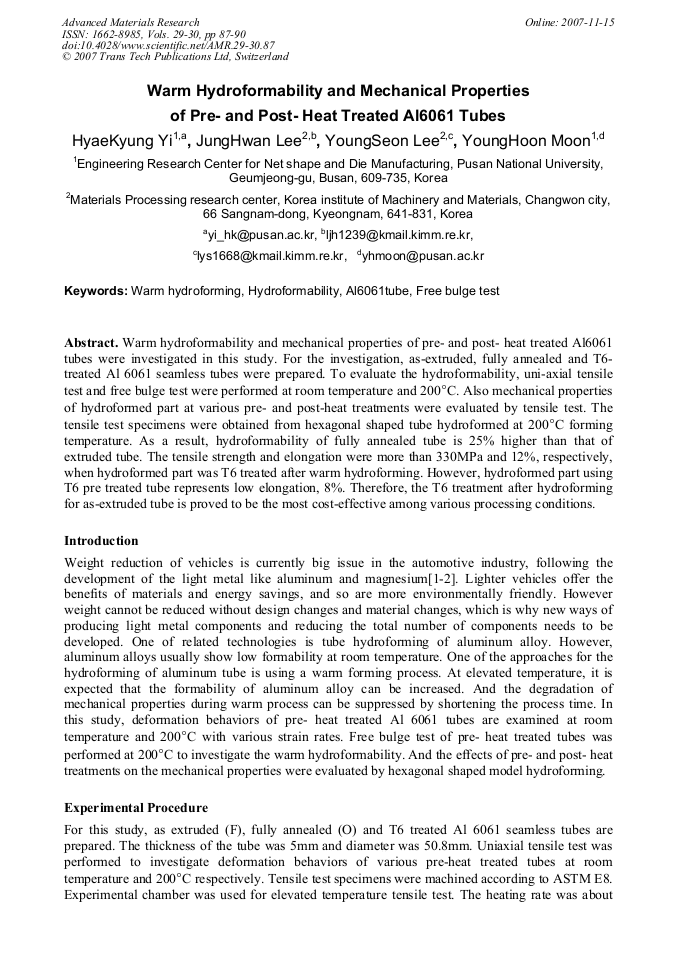

Warm Hydroformability and Mechanical Properties of Pre- and Post- Heat Treated Al6061 Tubes
  Abstract

Warm hydroformability and mechanical properties of pre- and post- heat treated Al6061 tubes were investigated in this study. For the investigation, as-extruded, fully annealed and T6- treated Al 6061 seamless tubes were prepared. To evaluate the hydroformability, uni-axial tensile test and free bulge test were performed at room temperature and 200ÓC. Also mechanical properties of hydroformed part at various pre- and post-heat treatments were evaluated by tensile test. The tensile test specimens were obtained from hexagonal shaped tube hydroformed at 200ÓC forming temperature. As a result, hydroformability of fully annealed tube is 25% higher than that of extruded tube. The tensile strength and elongation were more than 330MPa and 12%, respectively, when hydroformed part was T6 treated after warm hydroforming. However, hydroformed part using T6 pre treated tube represents low elongation, 8%. Therefore, the T6 treatment after hydroforming for as-extruded tube is proved to be the most cost-effective among various processing conditions.

  Info
Periodical
Advanced Materials Research (Volumes 29-30)
Edited by
Deliang Zhang, Kim Pickering, Brian Gabbitas, Peng Cao, Alan Langdon, Rob Torrens and Johan Verbeek
Pages
87-90
DOI
10.4028/www.scientific.net/AMR.29-30.87
Citation
H. K. Yi, J. H. Lee, Y. S. Lee, Y. H. Moon, "Warm Hydroformability and Mechanical Properties of Pre- and Post- Heat Treated Al6061 Tubes ", Advanced Materials Research, Vols. 29-30, pp. 87-90, 2007
Online since
November 2007
Export
Price
$32.00
Share

In order to see related information, you need to Login.

In order to see related information, you need to Login.

Authors: Temim Zribi, Ali Khalfallah, Hedi Belhadj Salah
Chapter 1: Formability of Metallic Materials
Abstract:The present paper aims to assess the accuracy of identification methods used in the evaluation of the flow stress relationship of tubular...
169
Authors: Fei Yang, Brian Gabbitas, Ajit Singh, Chung Fu Wang
Chapter 2: Material Additive and Joining Processes
Abstract:In this paper, pure titanium rods, with high strength and ductility, were prepared by vacuum sintering titanium powder compacts at 1300oC for...
147
