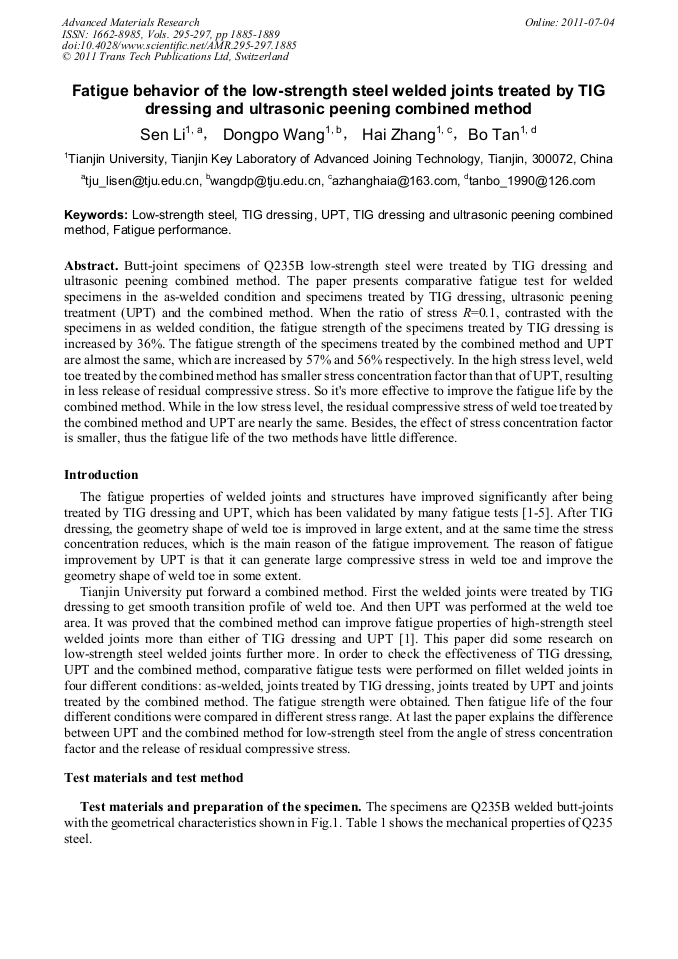

Paper Title:
Fatigue Behavior of the Low-Strength Steel Welded Joints Treated by TIG Dressing and Ultrasonic Peening Combined Method
  Abstract

Butt-joint specimens of Q235B low-strength steel were treated by TIG dressing and ultrasonic peening combined method. The paper presents comparative fatigue test for welded specimens in the as-welded condition and specimens treated by TIG dressing, ultrasonic peening treatment (UPT) and the combined method. When the ratio of stress R=0.1, contrasted with the specimens in as welded condition, the fatigue strength of the specimens treated by TIG dressing is increased by 36%. The fatigue strength of the specimens treated by the combined method and UPT are almost the same, which are increased by 57% and 56% respectively. In the high stress level, weld toe treated by the combined method has smaller stress concentration factor than that of UPT, resulting in less release of residual compressive stress. So it's more effective to improve the fatigue life by the combined method. While in the low stress level, the residual compressive stress of weld toe treated by the combined method and UPT are nearly the same. Besides, the effect of stress concentration factor is smaller, thus the fatigue life of the two methods have little difference.

  Info
Periodical
Advanced Materials Research (Volumes 295-297)
Chapter
Chapter 5: Joining Processes and Equipment
Edited by
Pengcheng Wang, Liqun Ai, Yungang Li, Xiaoming Sang and Jinglong Bu
Pages
1885-1889
DOI
10.4028/www.scientific.net/AMR.295-297.1885
Citation
S. Li, D. P. Wang, H. Zhang, B. Tan, "Fatigue Behavior of the Low-Strength Steel Welded Joints Treated by TIG Dressing and Ultrasonic Peening Combined Method", Advanced Materials Research, Vols. 295-297, pp. 1885-1889, 2011
Online since
July 2011
Export
Price
$32.00
Share

In order to see related information, you need to Login.

In order to see related information, you need to Login.

Authors: Chun Run Li, Zhen Ping Cao, Zong Tao Fang
Chapter 1: Materials Science and Processing
Abstract:TIG dressing combined with ultrasonic peening was conducted on low-strength steel Q235B in this paper, the fatigue strength of which was...
48
