Paper Title:
PLC Sequence Control System of Special Drill Machine
  Abstract

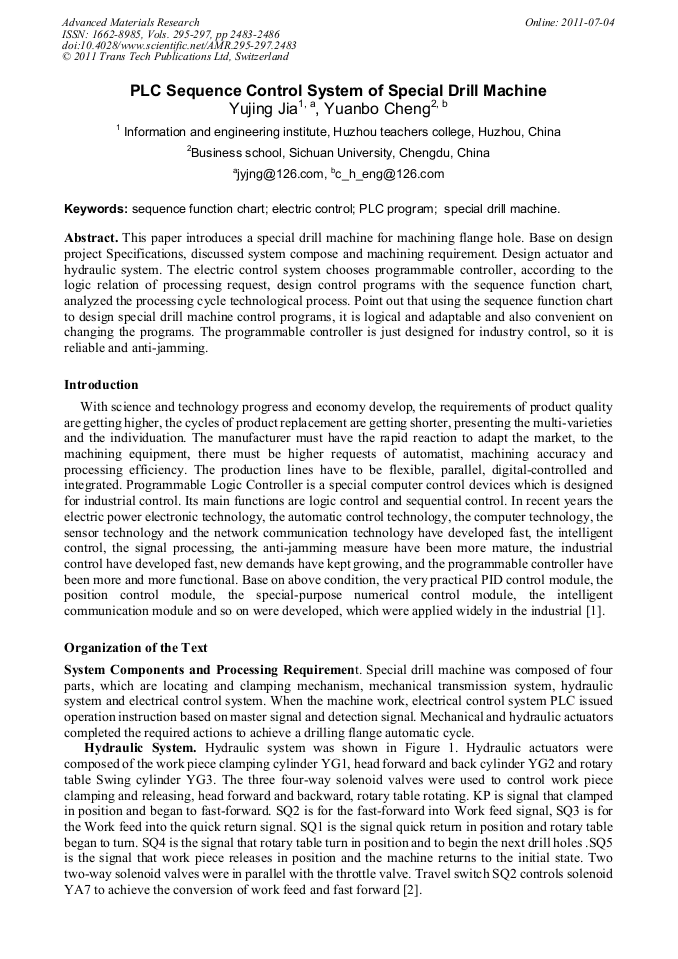

This paper introduces a special drill machine for machining flange hole. Base on design project Specifications, discussed system compose and machining requirement. Design actuator and hydraulic system. The electric control system chooses programmable controller, according to the logic relation of processing request, design control programs with the sequence function chart, analyzed the processing cycle technological process. Point out that using the sequence function chart to design special drill machine control programs, it is logical and adaptable and also convenient on changing the programs. The programmable controller is just designed for industry control, so it is reliable and anti-jamming.

  Info
Periodical
Advanced Materials Research (Volumes 295-297)
Chapter
Chapter 8: Manufacturing in a Competitive Environment
Edited by
Pengcheng Wang, Liqun Ai, Yungang Li, Xiaoming Sang and Jinglong Bu
Pages
2483-2486
DOI
10.4028/www.scientific.net/AMR.295-297.2483
Citation
Y. J. Jia, Y. B. Cheng, "PLC Sequence Control System of Special Drill Machine", Advanced Materials Research, Vols. 295-297, pp. 2483-2486, 2011
Online since
July 2011
