Paper Title:
Development of Direct Slicing Software of Three-Dimensional Model Based on Pro/E
  Abstract

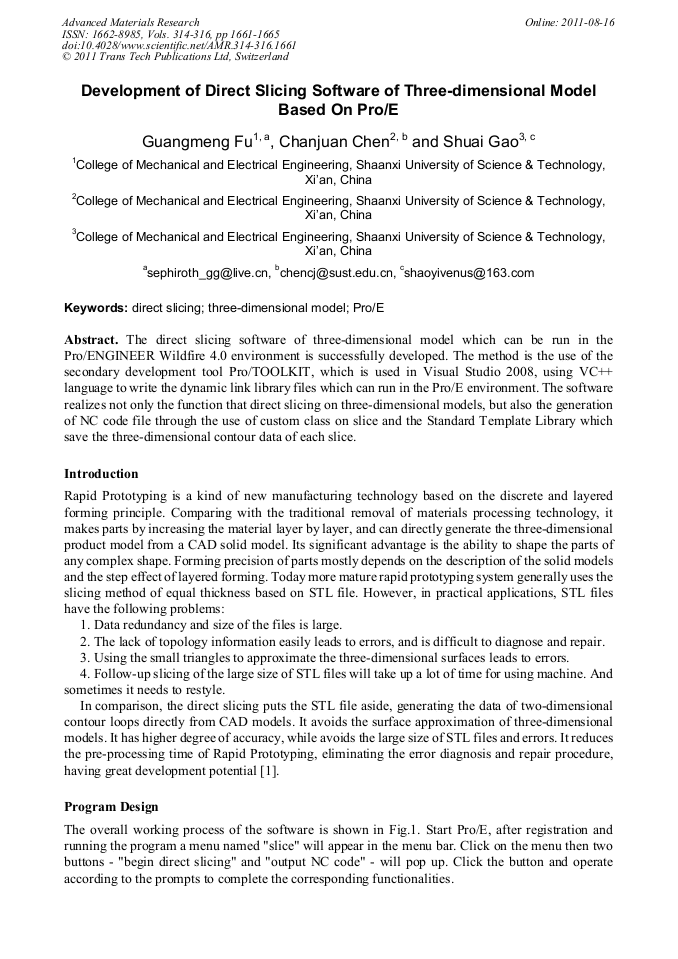

The direct slicing software of three-dimensional model which can be run in the Pro/ENGINEER Wildfire 4.0 environment is successfully developed. The method is the use of the secondary development tool Pro/TOOLKIT, which is used in Visual Studio 2008, using VC++ language to write the dynamic link library files which can run in the Pro/E environment. The software realizes not only the function that direct slicing on three-dimensional models, but also the generation of NC code file through the use of custom class on slice and the Standard Template Library which save the three-dimensional contour data of each slice.

  Info
Periodical
Advanced Materials Research (Volumes 314-316)
Chapter
CAM/CAE
Edited by
Jian Gao
Pages
1661-1665
DOI
10.4028/www.scientific.net/AMR.314-316.1661
Citation
G. M. Fu, C. J. Chen, S. Gao, "Development of Direct Slicing Software of Three-Dimensional Model Based on Pro/E", Advanced Materials Research, Vols. 314-316, pp. 1661-1665, 2011
