Paper Title:

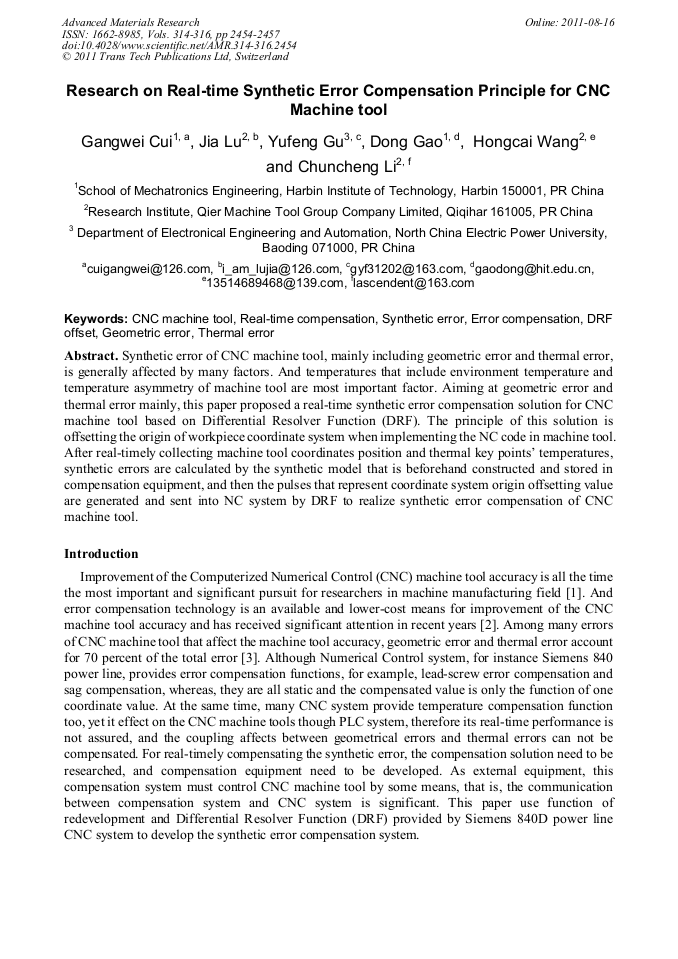

Research on Real-Time Synthetic Error Compensation Principle for CNC Machine Tool
  Abstract

Synthetic error of CNC machine tool, mainly including geometric error and thermal error, is generally affected by many factors. And temperatures that include environment temperature and temperature asymmetry of machine tool are most important factor. Aiming at geometric error and thermal error mainly, this paper proposed a real-time synthetic error compensation solution for CNC machine tool based on Differential Resolver Function (DRF). The principle of this solution is offsetting the origin of workpiece coordinate system when implementing the NC code in machine tool. After real-timely collecting machine tool coordinates position and thermal key points’ temperatures, synthetic errors are calculated by the synthetic model that is beforehand constructed and stored in compensation equipment, and then the pulses that represent coordinate system origin offsetting value are generated and sent into NC system by DRF to realize synthetic error compensation of CNC machine tool.

  Info
Periodical
Advanced Materials Research (Volumes 314-316)
Chapter
The Internet of Things
Edited by
Jian Gao
Pages
2454-2457
DOI
10.4028/www.scientific.net/AMR.314-316.2454
Citation
G. W. Cui, J. Lu, Y. F. Gu, D. Gao, H. C. Wang, C. C. Li, "Research on Real-Time Synthetic Error Compensation Principle for CNC Machine Tool", Advanced Materials Research, Vols. 314-316, pp. 2454-2457, 2011
Online since
August 2011
