Paper Title:
Study on the Angle of Stationary Crescent for Radial Compensation of Inner Mesh Gear Pumps
  Abstract

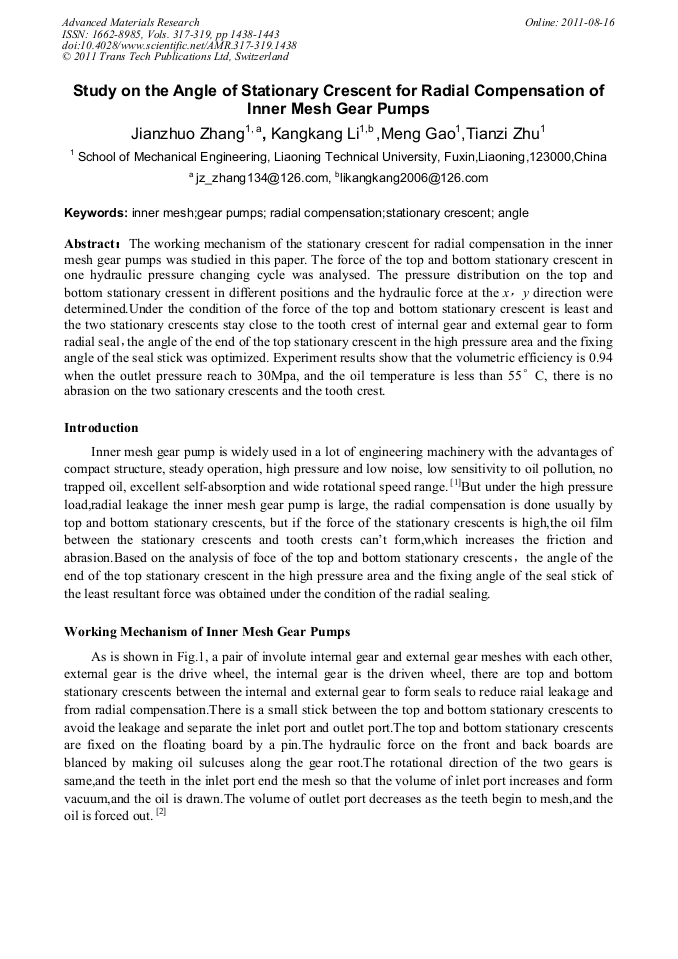

Abstract:The working mechanism of the stationary crescent for radial compensation in the inner mesh gear pumps was studied in this paper. The force of the top and bottom stationary crescent in one hydraulic pressure changing cycle was analysed. The pressure distribution on the top and bottom stationary cressent in different positions and the hydraulic force at the x,y direction were determined.Under the condition of the force of the top and bottom stationary crescent is least and the two stationary crescents stay close to the tooth crest of internal gear and external gear to form radial seal,the angle of the end of the top stationary crescent in the high pressure area and the fixing angle of the seal stick was optimized. Experiment results show that the volumetric efficiency is 0.94 when the outlet pressure reach to 30Mpa, and the oil temperature is less than 55°C, there is no abrasion on the two sationary crescents and the tooth crest.
