Paper Title:

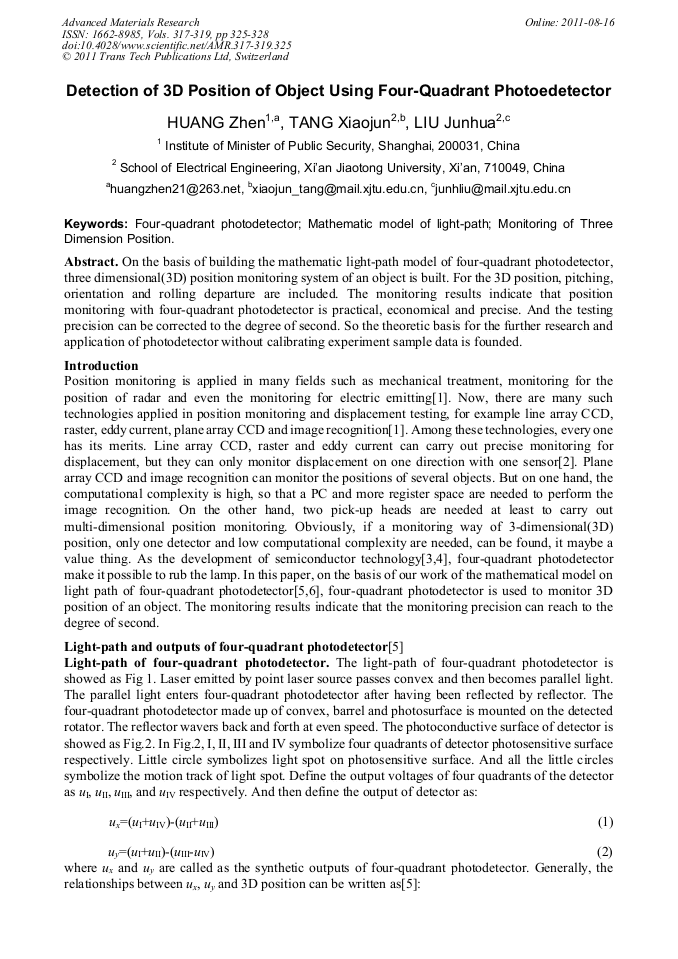

Detection of 3D Position of Object Using Four-Quadrant Photoedetector
  Abstract

On the basis of building the mathematic light-path model of four-quadrant photodetector, three dimensional(3D) position monitoring system of an object is built. For the 3D position, pitching, orientation and rolling departure are included. The monitoring results indicate that position monitoring with four-quadrant photodetector is practical, economical and precise. And the testing precision can be corrected to the degree of second. So the theoretic basis for the further research and application of photodetector without calibrating experiment sample data is founded.

  Info
Periodical
Advanced Materials Research (Volumes 317-319)
Chapter
Materials and Its Applications
Edited by
Xin Chen
Pages
325-328
DOI
10.4028/www.scientific.net/AMR.317-319.325
Citation
Z. Huang, X. J. Tang, J. H. Liu, "Detection of 3D Position of Object Using Four-Quadrant Photoedetector", Advanced Materials Research, Vols. 317-319, pp. 325-328, 2011
Online since
August 2011
