Paper Title:

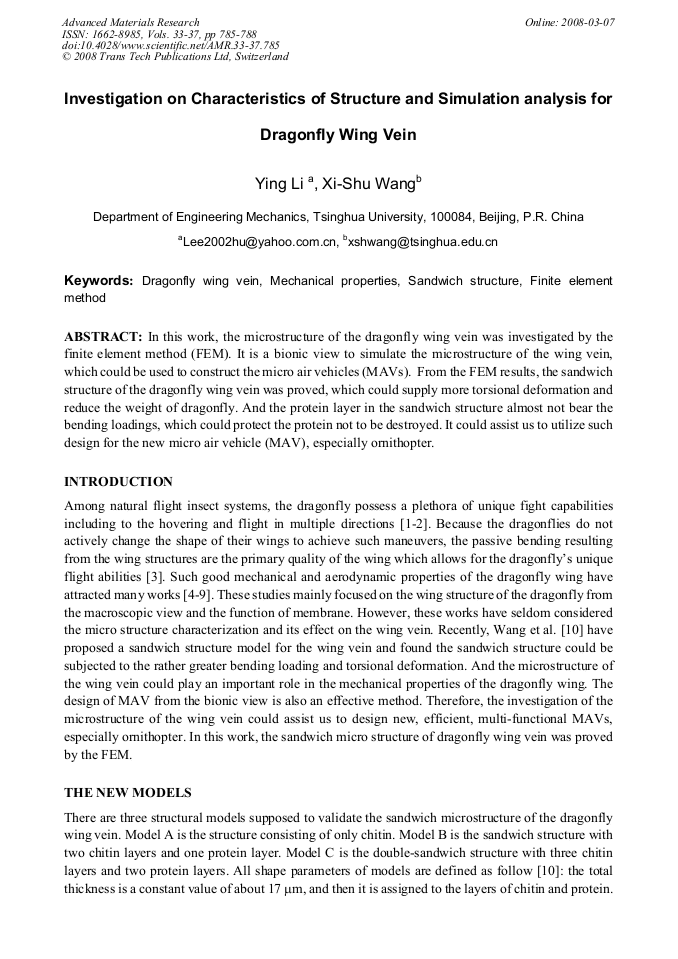

Investigation on Characteristics of Structure and Simulation Analysis for Dragonfly Wing Vein
  Abstract

In this work, the microstructure of the dragonfly wing vein was investigated by the finite element method (FEM). It is a bionic view to simulate the microstructure of the wing vein, which could be used to construct the micro air vehicles (MAVs). From the FEM results, the sandwich structure of the dragonfly wing vein was proved, which could supply more torsional deformation and reduce the weight of dragonfly. And the protein layer in the sandwich structure almost not bear the bending loadings, which could protect the protein not to be destroyed. It could assist us to utilize such design for the new micro air vehicle (MAV), especially ornithopter.

  Info
Periodical
Advanced Materials Research (Volumes 33-37)
Edited by
Wei Yang, Mamtimin Geni, Tiejun Wang and Zhuo Zhuang
Pages
785-788
DOI
10.4028/www.scientific.net/AMR.33-37.785
Citation
Y. Li, X. S. Wang, "Investigation on Characteristics of Structure and Simulation Analysis for Dragonfly Wing Vein", Advanced Materials Research, Vols. 33-37, pp. 785-788, 2008
Online since
March 2008
