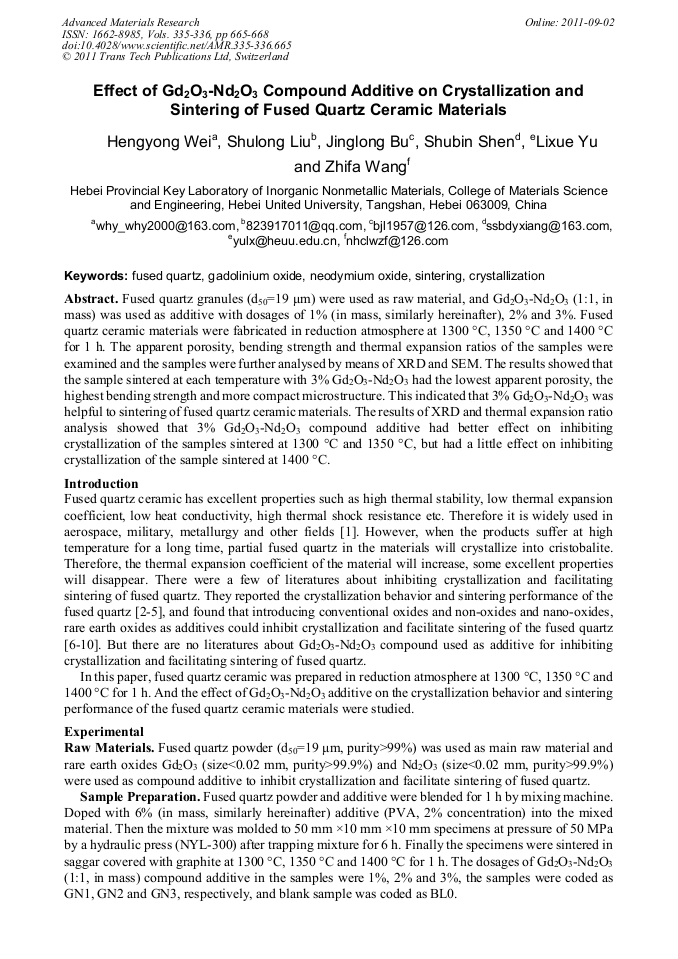

Fused quartz granules (d50=19 μm) were used as raw material, and Gd2O3-Nd2O3 (1:1, in mass) was used as additive with dosages of 1% (in mass, similarly hereinafter), 2% and 3%. Fused quartz ceramic materials were fabricated in reduction atmosphere at 1300 °C, 1350 °C and 1400 °C for 1 h. The apparent porosity, bending strength and thermal expansion ratios of the samples were examined and the samples were further analysed by means of XRD and SEM. The results showed that the sample sintered at each temperature with 3% Gd2O3-Nd2O3 had the lowest apparent porosity, the highest bending strength and more compact microstructure. This indicated that 3% Gd2O3-Nd2O3 was helpful to sintering of fused quartz ceramic materials. The results of XRD and thermal expansion ratio analysis showed that 3% Gd2O3-Nd2O3 compound additive had better effect on inhibiting crystallization of the samples sintered at 1300 °C and 1350 °C, but had a little effect on inhibiting crystallization of the sample sintered at 1400 °C.
