Paper Title:

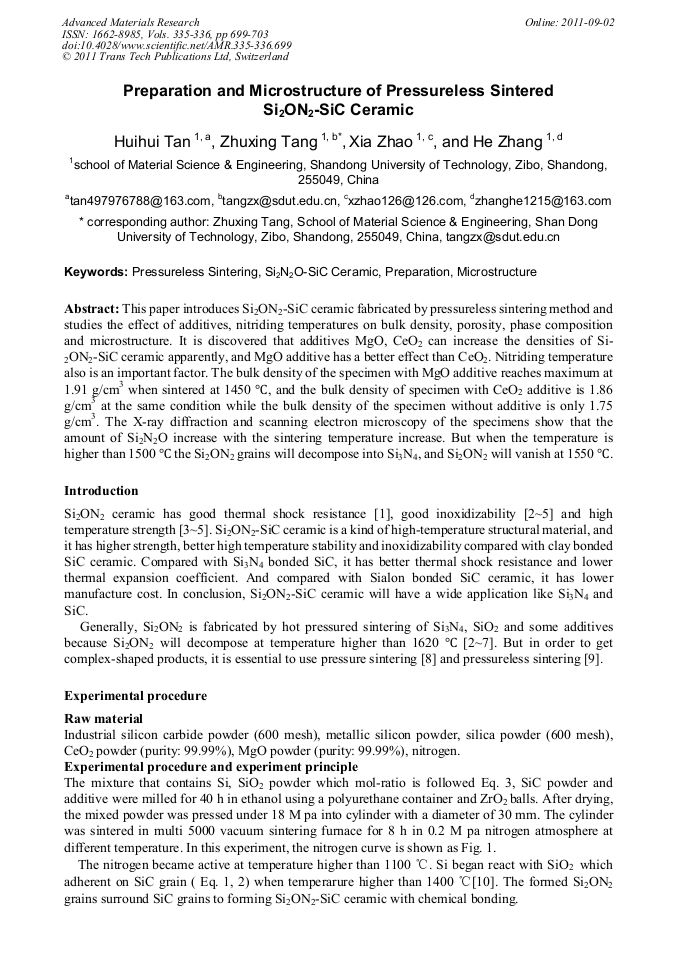

Preparation and Microstructure of Pressureless Sintered Si2ON2-SiC Ceramic
  Abstract

This paper introduces Si2ON2-SiC ceramic fabricated by pressureless sintering method and studies the effect of additives, nitriding temperatures on bulk density, porosity, phase composition and microstructure. It is discovered that additives MgO, CeO2 can increase the densities of Si2ON2-SiC ceramic apparently, and MgO additive has a better effect than CeO2. Nitriding temperature also is an important factor. The bulk density of the specimen with MgO additive reaches maximum at 1.91 g/cm3 when sintered at 1450 °C, and the bulk density of specimen with CeO2 additive is 1.86 g/cm3 at the same condition while the bulk density of the specimen without additive is only 1.75 g/cSuperscript textm3. The X-ray diffraction and scanning electron microscopy of the specimens show that the amount of Si2ON2 increase with the sintering temperature increase. But when the temperature is higher than 1500 °C the Si2ON2 grains will decompose into Si3N4, and Si2ON2 will vanish at 1550 °C

  Info
Periodical
Advanced Materials Research (Volumes 335-336)
Chapter
Chapter 4: Ceramic
Edited by
Yun-Hae Kim, Prasad Yarlagadda, Xiaodong Zhang and Zhijiu Ai
Pages
699-703
DOI
10.4028/www.scientific.net/AMR.335-336.699
Citation
H. H. Tan, Z. X. Tang, X. Zhao, H. Zhang, "Preparation and Microstructure of Pressureless Sintered Si2ON2-SiC Ceramic", Advanced Materials Research, Vols. 335-336, pp. 699-703, 2011
Online since
September 2011
Export
Price
$32.00
Share

In order to see related information, you need to Login.

In order to see related information, you need to Login.

Authors: Rosa Maria da Rocha, Francisco Cristóvão Lourenço de Melo
Abstract:The effect of three different sintering additive systems on densification of boron carbide powder was investigated. The sintering additives...
170
Authors: Shu Bin Shen, Jing Long Bu, Li Xue Yu, Zhi Fa Wang, Rong Lin Wang, Rui Sheng Wang
Surface Engineering/Coatings
Abstract:Fused quartz granules (d50=19 μm) were used as raw material, and B4C-Yb2O3 (1:1, in mass) was...
24
