Paper Title:

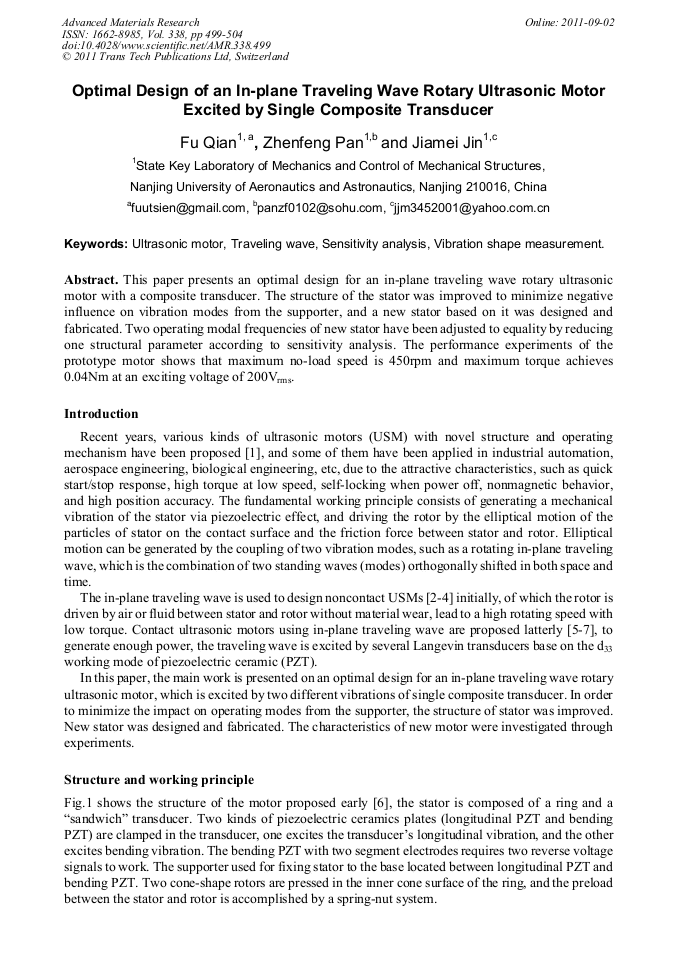

Optimal Design of an in-Plane Traveling Wave Rotary Ultrasonic Motor Excited by Single Composite Transducer
  Abstract

This paper presents an optimal design for an in-plane traveling wave rotary ultrasonic motor with a composite transducer. The structure of the stator was improved to minimize negative influence on vibration modes from the supporter, and a new stator based on it was designed and fabricated. Two operating modal frequencies of new stator have been adjusted to equality by reducing one structural parameter according to sensitivity analysis. The performance experiments of the prototype motor shows that maximum no-load speed is 450rpm and maximum torque achieves 0.04Nm at an exciting voltage of 200Vrms.

  Info
Periodical
Chapter
Chapter 3: Mechanical Dynamics and its Applications
Edited by
Xiaodong Zhang, Zhijiu Ai, Prasad Yarlagadda and Yun-Hae Kim
Pages
499-504
DOI
10.4028/www.scientific.net/AMR.338.499
Citation
F. Qian, Z. F. Pan, J. M. Jin, "Optimal Design of an in-Plane Traveling Wave Rotary Ultrasonic Motor Excited by Single Composite Transducer", Advanced Materials Research, Vol. 338, pp. 499-504, 2011
Online since
September 2011
Export
Price
$32.00
