Paper Title:

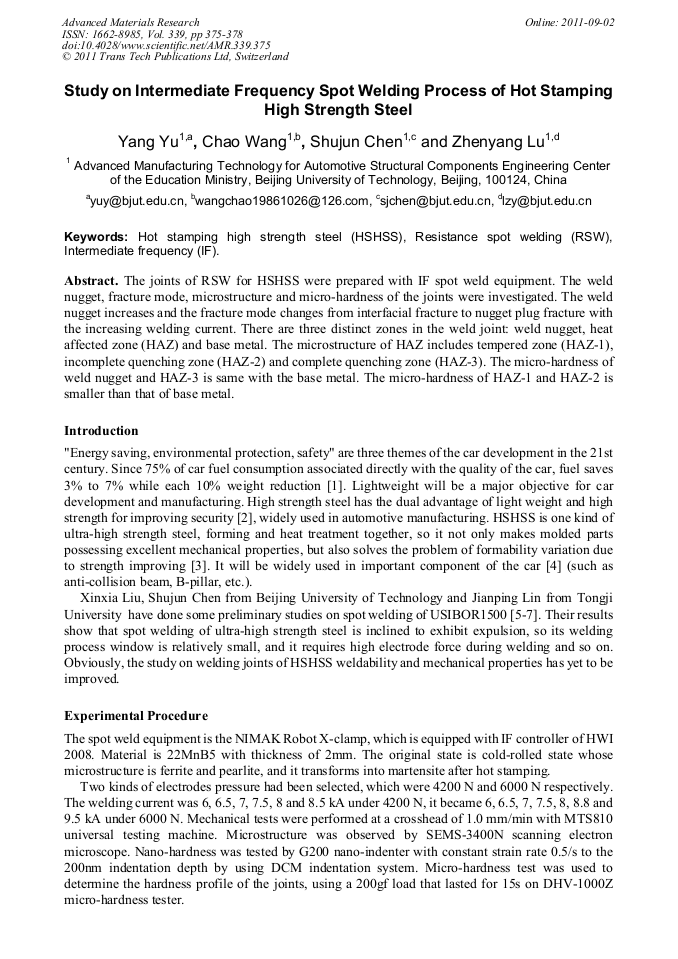

Study on Intermediate Frequency Spot Welding Process of Hot Stamping High Strength Steel
  Abstract

The joints of RSW for HSHSS were prepared with IF spot weld equipment. The weld nugget, fracture mode, microstructure and micro-hardness of the joints were investigated. The weld nugget increases and the fracture mode changes from interfacial fracture to nugget plug fracture with the increasing welding current. There are three distinct zones in the weld joint: weld nugget, heat affected zone (HAZ) and base metal. The microstructure of HAZ includes tempered zone (HAZ-1), incomplete quenching zone (HAZ-2) and complete quenching zone (HAZ-3). The micro-hardness of weld nugget and HAZ-3 is same with the base metal. The micro-hardness of HAZ-1 and HAZ-2 is smaller than that of base metal.

  Info
Periodical
Chapter
Chapter 5: Monitoring and Control of the Manufacturing Process
Edited by
Zhijiu Ai, Xiaodong Zhang, Yun-Hae Kim and Prasad Yarlagadda
Pages
375-378
DOI
10.4028/www.scientific.net/AMR.339.375
Citation
Y. Yu, C. Wang, S. J. Chen, Z. Y. Lu, "Study on Intermediate Frequency Spot Welding Process of Hot Stamping High Strength Steel", Advanced Materials Research, Vol. 339, pp. 375-378, 2011
Online since
September 2011
Export
Price
$32.00
Share

In order to see related information, you need to Login.

In order to see related information, you need to Login.

Authors: You Zhen Fang
Chapter 1: Material Technologies and Testing
Abstract:Resistance spot welding of BTR165 was applied to study property of its joint by using power-frequency alternating current welding equipments....
112
Authors: A. Al-Mukhtar
Abstract:The engineering parts joining by the spot welding require acceptable properties to survive the loading conditions XE "temperature". Several...
31
