Paper Title:

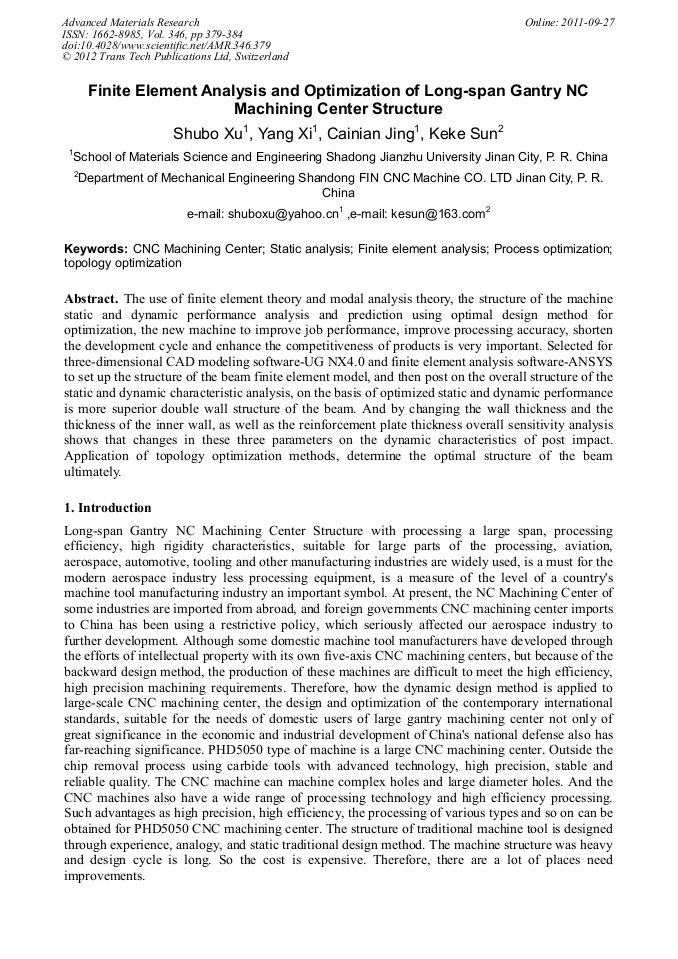

Finite Element Analysis and Optimization of Long-Span Gantry NC Machining Center Structure
  Abstract

The use of finite element theory and modal analysis theory, the structure of the machine static and dynamic performance analysis and prediction using optimal design method for optimization, the new machine to improve job performance, improve processing accuracy, shorten the development cycle and enhance the competitiveness of products is very important. Selected for three-dimensional CAD modeling software-UG NX4.0 and finite element analysis software-ANSYS to set up the structure of the beam finite element model, and then post on the overall structure of the static and dynamic characteristic analysis, on the basis of optimized static and dynamic performance is more superior double wall structure of the beam. And by changing the wall thickness and the thickness of the inner wall, as well as the reinforcement plate thickness overall sensitivity analysis shows that changes in these three parameters on the dynamic characteristics of post impact. Application of topology optimization methods, determine the optimal structure of the beam ultimately.

  Info
Periodical
Chapter
Chapter 2: Materials Science in Computer-Aided Manufacturing and Design
Edited by
Wensong Hu
Pages
379-384
DOI
10.4028/www.scientific.net/AMR.346.379
Citation
S. B. Xu, Y. Xi, C. N. Jing, K. K. Sun, "Finite Element Analysis and Optimization of Long-Span Gantry NC Machining Center Structure", Advanced Materials Research, Vol. 346, pp. 379-384, 2012
Online since
September 2011
