Paper Title:

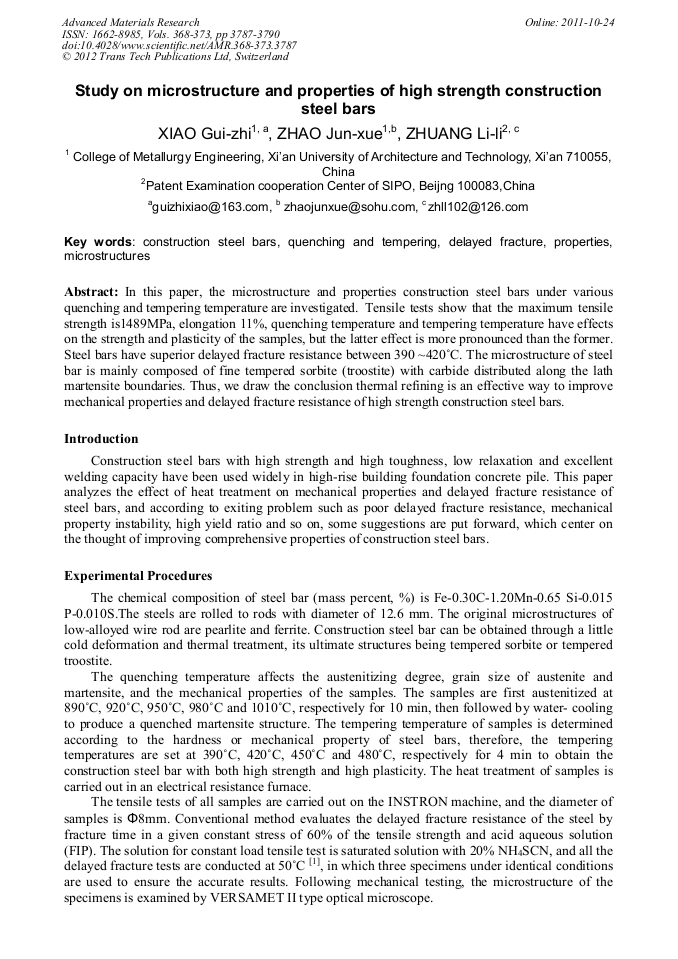

Study on Microstructure and Properties of High Strength Construction Steel Bars
  Abstract

In this paper, the microstructure and properties construction steel bars under various quenching and tempering temperature are investigated. Tensile tests show that the maximum tensile strength is1489MPa, elongation 11%, quenching temperature and tempering temperature have effects on the strength and plasticity of the samples, but the latter effect is more pronounced than the former. Steel bars have superior delayed fracture resistance between 390 ~420°C. The microstructure of steel bar is mainly composed of fine tempered sorbite (troostite) with carbide distributed along the lath martensite boundaries. Thus, we draw the conclusion thermal refining is an effective way to improve mechanical properties and delayed fracture resistance of high strength construction steel bars.

  Info
Periodical
Advanced Materials Research (Volumes 368-373)
Chapter
Chapter 11: Innovation and Application of Ecological Architecture Technology
Edited by
Qing Yang, Li Hua Zhu, Jing Jing He, Zeng Feng Yan and Rui Ren
Pages
3787-3790
DOI
10.4028/www.scientific.net/AMR.368-373.3787
Citation
G. Z. Xiao, J. X. Zhao, L. L. Zhuang, "Study on Microstructure and Properties of High Strength Construction Steel Bars", Advanced Materials Research, Vols. 368-373, pp. 3787-3790, 2012
Online since
October 2011
Export
Price
$32.00
Share

In order to see related information, you need to Login.

In order to see related information, you need to Login.

Authors: Ignacy Wierszyłłowski
Abstract:A significant increase in durability of cryogenically treated tools after quenching was reported by a number of publications [1, 2]. As...
415
Authors: Jie Shi, Wen Quan Cao, Han Dong
Abstract:In this study a C-Mn High Strength Low Alloy steel (HSLAs) was processed by quenching and austenite reverted transformation during annealing...
238
Authors: Guo Bin Li, Zheng Zhi Zhao, Di Tang
Abstract:The microstructure evolution of 780 MPa hot dip galvanized dual-phase (DP) steel at heating stages of the annealing process was analyzed...
1331
Authors: Jin Ming Liu, Jie Liu, Guang Wei Fan, Dong Fang Du, Guo Ping Li, Cheng Jun Chai
A. Environment Related Materials and Photocatalysts
Abstract:Effect of solution treated temperature at 5001100°C on ferrite/austenite ratio and σ phase precipitation has been studied in this paper, and...
3
Authors: Li Hui Wang, Di Tang, Hai Tao Jiang, Ji Bin Liu, Yu Chen
Chapter 3: Steel and Iron Technology
Abstract:Effects of continuous annealing process on microstructure and properties of Si based cold-rolled TRIP Steel were studied. The results show...
472
