Paper Title:
Measurement Research on Magnetic Properties of Electrical Steel Sheet under DC Bias Conditions
  Abstract

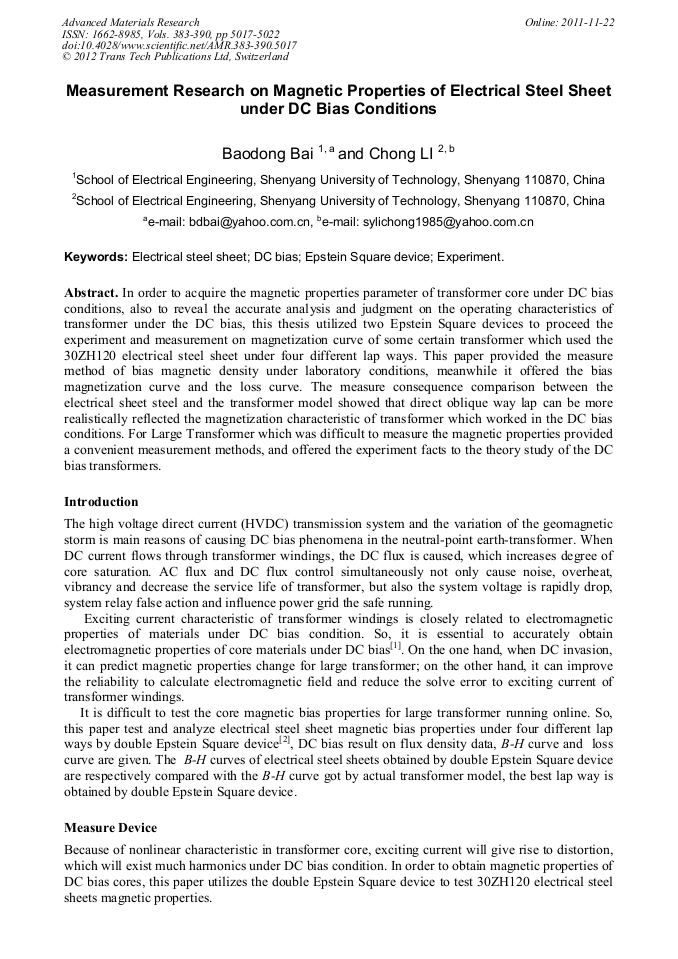

In order to acquire the magnetic properties parameter of transformer core under DC bias conditions, also to reveal the accurate analysis and judgment on the operating characteristics of transformer under the DC bias, this thesis utilized two Epstein Square devices to proceed the experiment and measurement on magnetization curve of some certain transformer which used the 30ZH120 electrical steel sheet under four different lap ways. This paper provided the measure method of bias magnetic density under laboratory conditions, meanwhile it offered the bias magnetization curve and the loss curve. The measure consequence comparison between the electrical sheet steel and the transformer model showed that direct oblique way lap can be more realistically reflected the magnetization characteristic of transformer which worked in the DC bias conditions. For Large Transformer which was difficult to measure the magnetic properties provided a convenient measurement methods, and offered the experiment facts to the theory study of the DC bias transformers.
