Paper Title:

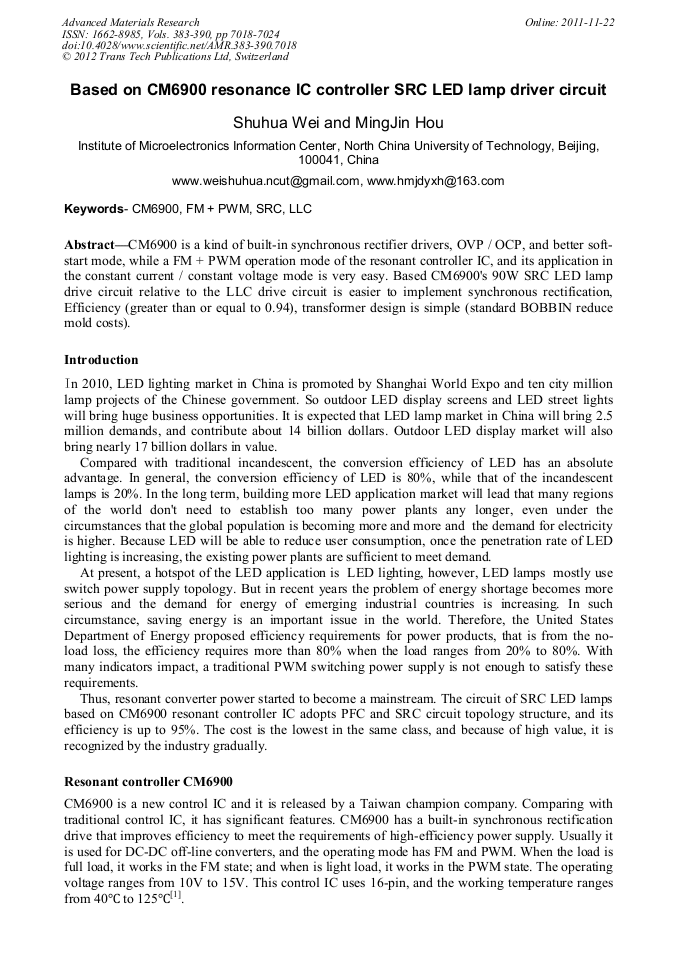

Based on CM6900 Resonance IC Controller SRC LED Lamp Driver Circuit
  Abstract

CM6900 is a kind of built-in synchronous rectifier drivers, OVP / OCP, and better soft-start mode, while a FM + PWM operation mode of the resonant controller IC, and its application in the constant current / constant voltage mode is very easy. Based CM6900's 90W SRC LED lamp drive circuit relative to the LLC drive circuit is easier to implement synchronous rectification, Efficiency (greater than or equal to 0.94), transformer design is simple (standard BOBBIN reduce mold costs).

  Info
Periodical
Advanced Materials Research (Volumes 383-390)
Chapter
Chapter 27: Semiconductor Materials Manufacturing
Edited by
Wu Fan
Pages
7018-7024
DOI
10.4028/www.scientific.net/AMR.383-390.7018
Citation
S. H. Wei, M. J. Hou, "Based on CM6900 Resonance IC Controller SRC LED Lamp Driver Circuit", Advanced Materials Research, Vols. 383-390, pp. 7018-7024, 2012
Online since
November 2011
Keywords
Export
Price
$32.00
